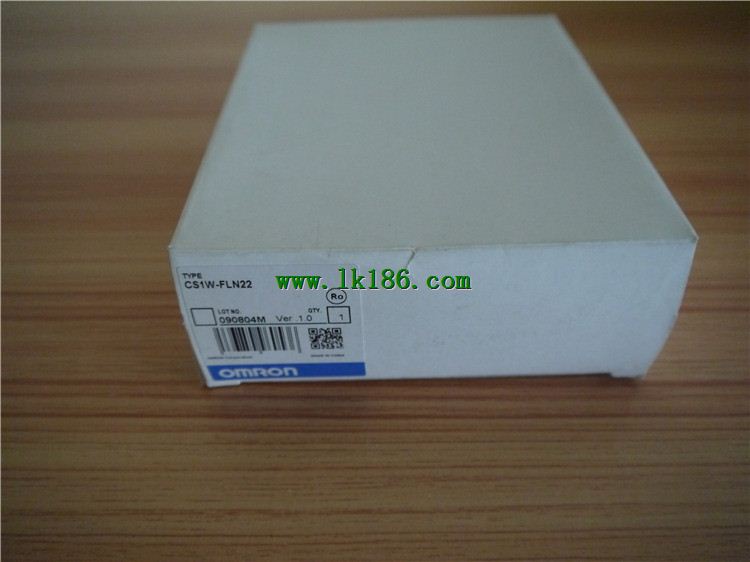

CS1W-FLN22 OMRON CS1W-FLN22 FL-net Unit

Name: Three-tier Screw Terminal Block.
Specifications: Inputs/Outputs;
8 inputs/8 outputs; PNP;
With Short-circuit and,
Disconnected Line Detection.
"Easy" and "Flexible" system expansion,
with linked CC-Link and CompoNet.
Branching is easily made with CompoNet CS1W-FLN22.
Wiring material cost can be reduced.
Biit-level I/O distribution reduces,
wiring in the system.
A wide variety of CompoNet Slave Units,
contribute to system size reduction.
Seven-segment Display on the Gateway Unit,
helps to detect errors on site CS1W-FLN22.
The Participation Flags and Communications,
Error Flags can be checked at the Host,
Controller to detect the location and,
content of the error. UM: 63.2K words.
DM: 6K words.
EM: 6Kx8 banks(48K) words CS1W-FLN22.
Instruction processing time (basic instructions): 0.1 µ.s min.
No. of I/O points: 1, 184 points.
Max. no.of con-necting Expansion I/O Racks: 3 Racks.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10 OMRON CS1W-FLN22.
RS-232C: NO.
Unit type: CS1 CPU Bus Unit.
Product name:FL-net Unit.
Specifications: Communications interface,
100BASE-TX; Communications functions,
With FL-net Ver. 2.0 specifications,
(OPCN-2) Data links and message service;
Max. Units mountable per CPU Unit,4 OMRON CS1W-FLN22.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.38A; 26V, --.
Standards: UC1, CE.
Connect to Multivendor Controller Networks.
This Unit allows you to connect to FL-net,
an open network based on Ethernet.
Multivendor FL-net networks can be built to,
combine CS series PLCs with CNC machines,
robots, and PLCs from other manufacturers OMRON CS1W-FLN22. CV500-RT SYSMAC BUS Remote I/O Slave Unit (wired) CV500-RT221.
Wire Type.Name: DC Power Supply Unit.
Power supply voltage: 24 VDC.
Output capacity: 5 VDC output capacity, 5.3A;
26 VDC output capacity, 1.3A;
Total, 40W.
Options: 24 V DC service power supply, No;
RUN output, No.
Standards: UC1, N, L, CE.
Redundant CPU Units , Power Supply Units ,
Communications Units ,
and Expansion I/O Cables. Unit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Units with EtherCAT interface.
Specifications: Control output interface,
Control commands executed by,
EtherCAT communications.
Positioning functions: Memory operation,
Direct operation by ladder programming;
No. of axes: 8 axes.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.46A; 24V,--.
Standards: UC1, CE.
Preeminent control performance and,
easy operation feature of EtherCAT,
improve the prodduction efficiency CS1W-FLN22.
The EtherCAT communications with,
100Mbps baud rate enables fast,
and accurate position control.
A wide range of position control,
functions are available with,
this position control unit.
