MITSUBISHI F940GOT-SWD System screen display language: japaneseMITSUBISHI F940GOT-SWD

MITSUBISHI inverter FR-A740 series.
Voltage level: 3 phase 400V.
Frequency converter capacity: 22KW.
FR-A700 converter products are suitable for all kinds of high load requirements of the equipment.
Such as lifting, lift, printing and dyeing, printing and dyeing, material coiling and other general occasions F940GOT-SWD.
High level driving performance.
Unique sensorless vector control mode,
A wide variety of mechanical equipment can be operated at high precision in the super low speed region without the need of the encoder F940GOT-SWD.
With torque control mode,
And in the speed control mode can use the torque limit function.
With vector control function (with encoder),
Frequency converter can achieve position control and fast response, high precision speed control (zero speed control, servo lock, etc F940GOT-SWD.) and torque control. Station type: Master station.
Maximum number of stations: maximum 16.
Occupied points: 8 points.
Transfer speed: 10Mbps.
Power supply: 240mA DC24V.
Weight: 0.3kg.
FX3U-16CCL-M is the master module of V2 CC-LINK.
The main station can be connected to 8 remote I/O stations, and 8 remote equipment station or intelligent equipment station MITSUBISHI F940GOT-SWD.
Can be connected to FX3GA, FX3GE, FX3GC, FX3U and FX3UC of the host.
Connecting FX3UC, FX3GC requires FX2NC-CNV-IF or FX3UC-IPS-5V.
Series Name: F940GOT.
System screen display language: japanese MITSUBISHI F940GOT-SWD.
Display: 5.7 inches, suitable for a variety of applications, GOT.
Display color: 8 color.
Display device: LCD STN.
Resolution: 320 * 240.
Installation type: panel mounting.
The built-in communication port: RS-422 (1ch) /RS-232C (1ch) MITSUBISHI F940GOT-SWD.
Power supply voltage: DC24V.

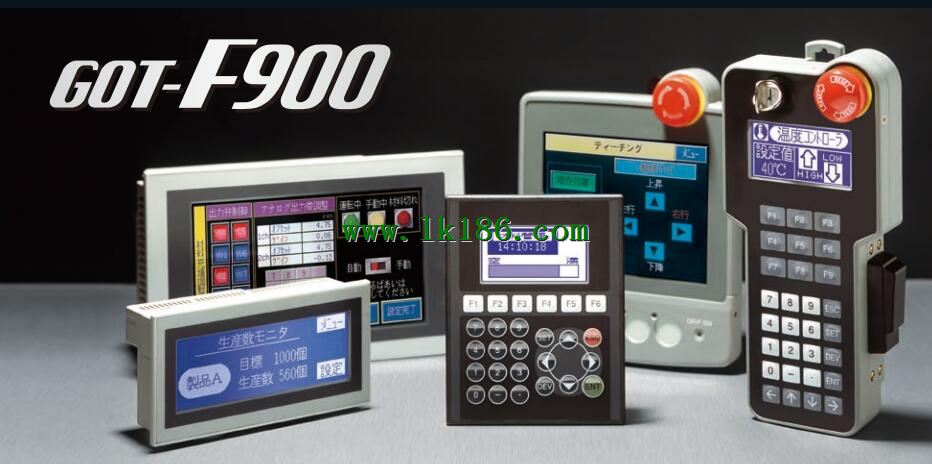

GOT-F900 series can be easily applied to a variety of different applications.
3 built-in communication channels.
3 standard communication ports are provided for the same PC (COM2:RS-232C) or a PLC (COM1:RS-232C and COM0:RS-422) communication.
Flexible layout.
F940WGOT can be installed in a vertical or horizontal direction.
The direction of the screen can be directed by programming software.
Screen area.
Through the split screen configuration, you can reduce the operating time.
The image can be divided into two or three parts to ddisplay F940GOT-SWD.
According to the user''s application example, the menu screen or the operation of the button sometimes on the screen will often be used to.
As a result, it is very time-consuming and inefficient to make a similar picture every time.
