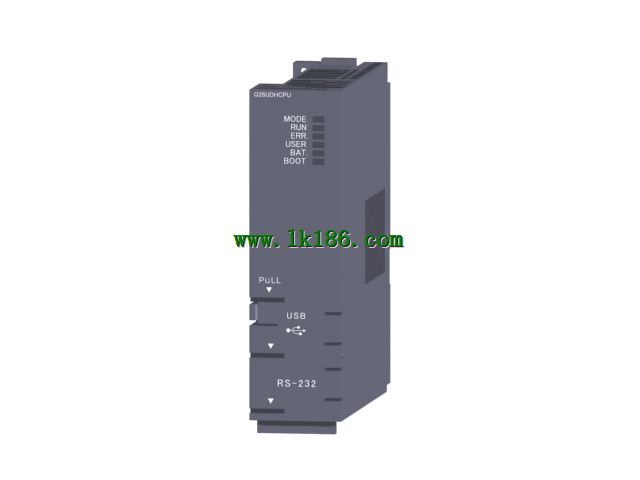

MITSUBISHI Q26UDHCPU Number of input and output elements: 8192MITSUBISHI Q26UDHCPU

RS232 connector conversion cable (round connector, 9 pin D-sub connector).
Easy connection through the hub CPU.
By using an Ethernet hub, programming tools and multiple CPU can be connected simultaneously.
Through the programming tool can be searched and displayed in the list has been connected to the CPU Q26UDHCPU.
Therefore, even if the IP CPU address is unknown, justt choose from this list, you can easily connect.
Seamless communication without network level constraints.
With the latest high-speed, large capacity IE CC-Link controller network and IE CC-Link field network,
Corresponding to the increasing amount of information Q26UDHCPU.
Together with previous MELSECNET/H, Ethernet and CC-Link,
These networks can be across the network type or level of differences, to achieve seamless communication Q26UDHCPU.
Programmable logic controller on the network through the programming tool of the Ethernet connection,
Monitoring and programming.8 axis, differential drive output type.
Control unit: pulse.
Location data: 10 data / axis.
Maximum pulse output: 4Mpps.
40 pin connector MITSUBISHI Q26UDHCPU.
Differential output.
Ideal solution for simple multi axis positioning.
Perfect match with stepper motor control.
Plus deceleration smooth, speed change subtle.
To speed up the speed of positioning control to start processing.
Positioning module.
Open collector output MITSUBISHI Q26UDHCPU.
Differential driver output.
Based on the use of open collector outputs and differential drive output type 2 types.
Differential driver output type positioning module can transmit high speed instruction pulse (up to 4Mpps) to the servo amplifier reliably,
Transmission distance of up to 10 meters, to achieve high speed and high precision control MITSUBISHI Q26UDHCPU.
(the command pulse of the open collector positioning module is highest 200kpps.)
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
Input / output points: 4096 points.
Number of input and output elements: 8192.
Program capacity: 260 K step.
Processing speed: 0.0095 s.
Program memory capacity: 1040 KB.
Support USB and RS232.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motiion control synchronization, so it can achieve the maximization of computing efficiency Q26UDHCPU.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
