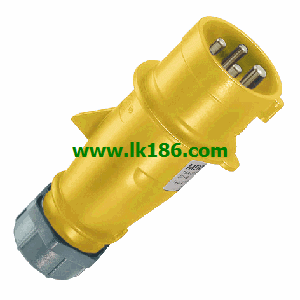

Mennekes 250 Plug AM-TOP

Product Name:Receptacle
Part No.:20235A.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier 250.
nickel plated contacts.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P 250.Product Name:AMAXX® automation enclosure
Part No.25505.
Fitted with:2 SCHUKO® 16A, 230V
Triple data enclosure
with transparent cover (lockable)
3 x liftable DIN-rails
1 x mounting plate 230 x 166 mm, mounted
1 x mounting plate 130 x 166 mm, mounted
1 x empty tube 19 mm Ø (for separation) 250 Mennekes 250 Mennekes 250 Mennekes 250.
Fusing:1 RCD 25A, 2p, 0.03A
2 MCB´s 16A, 1p, C
1 glas tube fuse T 6,3A (controller fuse).
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:650 x 225 mm (H x W).
Protection type:IP 44. <
top part grey RAL 7035 or yellow 1021 250.
bottom part black with screw-in nuts for installation of a floor-mounted base.
including a height-adjustable mounting rail.
with mounting rail catches.
cable gland set with multiple seal.
