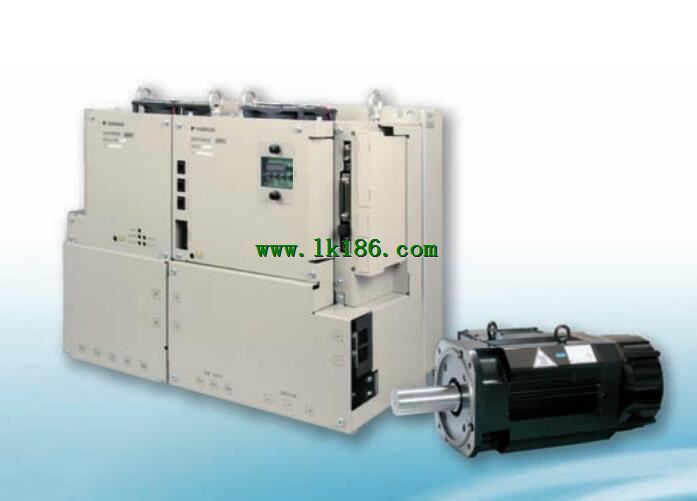

YASKAWA SGDV-750JE1B003 Price SGDV-750JE1B003

Sigma -V series servo motor SGMGV.
Rated output: 1.8kw.
Power supply voltage: AC400V.
Serial encoder: 20 bit Delta (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal.
A variety of mechanical feed shaft drive (high speed feed) SGDV-750JE1B003 Price.
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit) SGDV-750JE1B003
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above SGDV-750JE1B003 Price.
Using ambient temperature: 0 ~ 40 degrees C .
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew) SGDV-750JE1B003 Price.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationEven if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenSigma -V series servo motor SGMSV .
Rated output: 3.0kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC24V).
Super power rate.
Variety is complete (1.0kW ~ 7.0kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67 (7.0kw for IP22).
Use example:
Placement machine.
Punch printed circuit board.
Machine tool feeding device.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: fflange type .
Heat resistancce grade: F YASKAWA SGDV-750JE1B003.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% ((not dew) YASKAWA SGDV-750JE1B003.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
SGDV-750JE1B003 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=SGDV-750JE1B003&select=5
