1721 MENNEKES 1721

Product Name:Cepex enclosure
Part No.4322. grey 1721
as panel mounted receptacle MENNEKES 1721.
for installation of RJ45 data port receptacles .
2 keys.
with identical locks: part no + index G.Product Name:Cepex panel mounted receptacle
Part No.:4150.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
scscrew terminals.
with labelling field MENNEKES 1721.
suitable for installation in cable ducts and columns . Product Name:Panel mounted receptacle
Part No.:1350.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
flange: 62 x 62 mm.
fixing hole spacing: 47 x 47 mm.

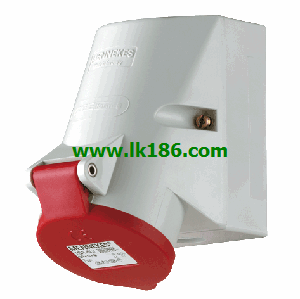

straight.Product Name:Wall mounted receptacle.
Part No.:1212.
Ampere:16A.
Poles:4p.
Voltage:>50-500V.
Earth position:10h.
Hertz:100-300 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switchProduct Name:Plug AM-TOP®
Part No.2422.
Ampere :16A.
Poles：3P.
Voltage:>50-250V.
Hertz:(DC) Hz.
Earth position:3 h.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals 1721 1721.
single part body.
cable gland and sealing.
strain relief and protection against kinking.
1721 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=1721&select=5
