1795 MENNEKES Door Switches 1795

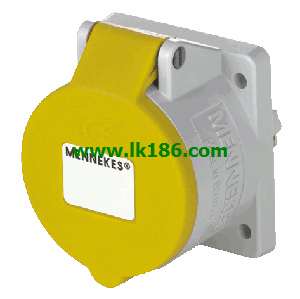

Product Name:Panel mounted receptacle
Part No.:3283.
Ampere:125A.
Poles:5p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screw terminals, TorsionSpringCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1795.
screw terminals.
TorsionSpringCONTACT 1795
straight.
receptacles with pilot contact: part no. + index P.Connecting terminal with screw.
Integrated shell structure.
With cable gland and seal.
With stress release device to prevent the cable from breaking.
Current: 32A.
Pole number: 4p MENNEKES 1795.
Voltage: 230V.
Location: 9h hour.
Hz: 50-60Hz.
Connection mode: screw connection .
Contact: standard.
Protection level: IP67.Product Name:Wall mounted receptacle
Part No.:7145.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67 MENNEKES 1795.
screw terminals.
fused with circuit breaker, K-characteristics . Product Name:Plug AM-TOP®
Part No.:252.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.Product Name:Panel mounted inlet
Part No.:474.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP67.
screw terminals.
with hinged lid.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:3155.
Ampere:32A.
Poles:4p.
Voltaage:400V 1795.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44.
screwless spring terminals 1795.
standard flange dimensions.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.
1795 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=1795&select=5
