2692 MENNEKES Door Switches 2692

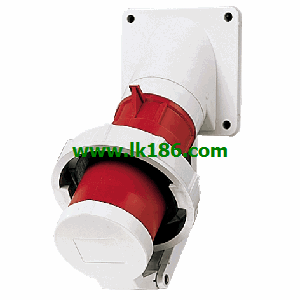

Product Name:Wall mounted receptacle
Part No.:5628A.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type IP44 MENNEKES 2692.
screw terminals.
switched.
mechanical DUO-interlock.
3 pole fuse socket D 02 2692
receptacles can be padlocked.Product Name:AMAXX® automation enclosure
Part No.25506.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V
Triple data enclosure
with transparent cover (lockable)
3 x liftable DIN-rails
1 x mounting plate 230 x 166 mm, mounted
1 x mounting plate 130 x 166 mm, mounted
1 x empty tube 19 mm Ø (for separation) MENNEKES 2692 MENNEKES 2692.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 16A, 3p, C
2 MCB´s 16A, 1p, C
1 glas tube fuse T 6,3A (controller fuse)
Connection/feeder cable:for 1 cable up to 5 x 10 mm²
Enclosure size:650 x 225 mm (H x W).
Protection type:IP 44.
top part grey RAL 7035 or yellow 1021.
bottom part black with screw-in nuts for installation of a floor-mounted base.
including a heiight-adjuustable mounting rail 2692.
with mounting rail catches.
cable gland set with multiple seal.Connecting terminal with screw.
Integrated shell structure.
With cable gland and seal.
With stress release device to prevent the cable from breaking.
Currrennt: 32A 2692.
Pole number: 4p.
Voltage: 230V.
Location: 9h hour.
Hz: 50-60Hz.
Connection mode: screw connection.
Contact: standard.
Protection level: IP67.
2692 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=2692&select=5
