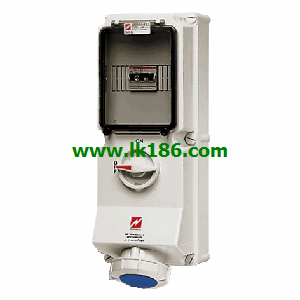

7238 MENNEKES 7238

Product Name:Compact network distributor
Part No.25715.
Fitted with :4 SCHUKO® 16A, 230V.
1 Cepex data port socket with 2 RJ45 connection module couplings,
type E-DAT module, port, cat.6, brand: BTR.
Connection/feeder cable：2 M 25 at the top (closed) MENNEKES 7238.
1 M 25 at the bottom (with cable gland) 7238
1 M 25 3 x 5-7 at the bottom (with cable gland).
(seal insert for 2 individual cables up to 8 mm Ø).
with terminal for 1 cable up to 5 x 4 mm².
Enclosure size:160 x 245 mm (H x W) MENNEKES 7238.
Protection type:IP44 .
network enclosure made of AMAPLAST MENNEKES 7238.
protection class IP 44.
top part electric grey RAL 7035 or yellow RAL 1021, bottom part black with screw-in nuts for installation of a floor-mounted base.
including a height-adjustable mounting rail.
cable gland set with multiple seal.Product Name:Connector AM-TOP®
Part No.:543.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP67.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.Product Name:Plug PowerTOP® Xtra
Part No.:13202.
Ampere:63A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Coontact:niickel plated contacts, highly heat resistant contact carrier 7238.
Protection type IP67.
screw terminals.
rubberised grip area.
frame terminals.
highly heat resistant contactt ccarrier 7238.
nickel plated contacts.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock.
two safety slides.
7238 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=7238&select=5
