7292 MENNEKES 7292

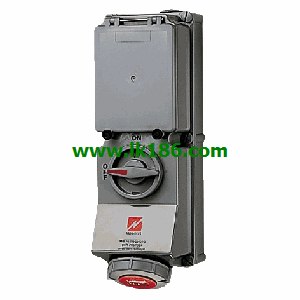

Product Name:AMAXX® receptacle combination
Part No.:940023.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p+N, C
1 MCB 16A, 3p+N, C
3 MCB´s 16A, 1p+N, C.
Pre-fuse max.:100A.
InA:42A.
RDF:0 MENNEKES 7292. 65.
Connection/feeder cable:for 2 cable up to 5 x 25mm² 7292
Enclosure size:520 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side MENNEKES 7292.
enclosure and insert made of AMAPLAST .
fusing behind a transparent cover.Product Name:AMAXX® receptacle combination
Part No.:960004.
Fitted with:1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V MENNEKES 7292.
Fusing:1 MCB 16A, 3p, C
1 MCB 16A, 1p, C .
Pre-fuse max.:63A.
InA:32A.
RDF:1.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Enclosure size:650 x 112.5 mm (H x W).
Protection type IP44.
pre-wired for installation.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1702.
Ampere:16A.
Poles:3p.
Voltage:400V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67.
screwless spring terminals.
suitable for through wiring.
20° inclination.Product Name:Plug ProTOP
Part No.:164.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz 7292.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP44.
screw terminals 7292.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.
7292 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=7292&select=5
