Product Name:Cepex flush mounted receptacle, alpine white
Part No.:4244.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with flush mounted installation box 1151A Price.
meeting DIN 18032 standards for ball rebound.Product Name:Wall mounted receptacle with TwinCONTACT
1151A
Part No.:1348.
Ampere:32 A.
Poles:4 p.
Voltage:400V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
external fixing.
cable entry from top 1151A Price.
blind entry ( can be cut out ) on the backside . Product Name:Connector PowerTOP® Xtra
Part No.:14107.
Ampere:63A.
Poles:4p
Voltage:500V.
Earth position:7h.
Hertz 50-60Hz.
Connection technology:Screw terminals, SoftCONTACT.
Contact:highly heat resistant contact carrier.
Protection type IP44 1151A Price.
screw terminals .
with rubberised grip area.
frame terminals.
with SoftCONTACT.
with highly heat resistant contact carrier.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock.
two safety slides.
products with pilot contact: part no. + index P.Product Name:Cepex wall mounted receptacle
Part No.:4167.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked.
on request with identical locks.

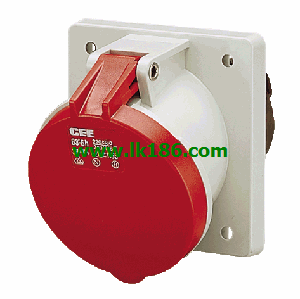

cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.Product Name:Panel mounted receptacle
Paart No .:1123A.
Amppere:63A MENNEKES 1151A.
Poles:4p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screw terminals, SoftCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1151A.
screw terminals.
SoftCONTACT.
straight.
receptacles with pilot contact: part no. + index P.
1151A Operation manual/Instructions/Model selection sample download link:
