MENNEKES 132 Door Switches 132

Product Name:Connector PowerTOP®
Part No.:3887.
Ampere:32A.
Poles:3p
Voltage:110V.
Earth position:4h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier MENNEKES 132.
Protection type IP67.
screw terminals 132
with highly heat resistant contact carrier.
cable gland and external cable grip.Product Name:AMAXX® receptacle combination
Part No.:920018.
Fitted with:2 CEE 16A, 3p, 400V.
Fusing:2 MCB´s 16A, 3p, D MENNEKES 132.
Pre-fuse max.:63A.
InA:32A.
RDF:1 .
Connection/feeder cable:for 2 cable up to 5 x 10 mm².
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES 132.
hinged to the side .
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.Product Name:Cepex enclosure
Part No.4344. alpine white.
as panel mounted receptacle.
for installation of RJ45 data port receptacles.
2 keys.

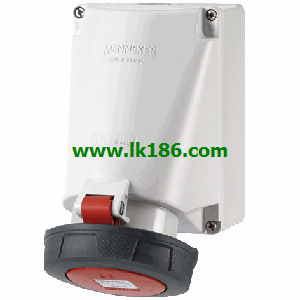

with identical locks: parrt no + index G 132.Product Name:Wall mounted receptacle.
Part No.:1194.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fffixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch
