MENNEKES 13224 Door Switches 13224

Product Name:AMAXX® receptacle combination
Part No.:950010.
Fitted with:2 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
2 MCB´s 32A, 3p, C
2 MCB 16A, 3p, C
3 MCB´s 16A, 1p, C.
Pre-fuse max.:63A.
InA:56A.
RDF:0 MENNEKES 13224. 5.
Connection/feeder cable:for 2 cable up to 5 x 25 mm².
Enclosure size:650 x 225 mm (H x W) 13224
Protection type IP44.
pre-wired for installation.
hinged to the side MENNEKES 13224.
enclosure and insert made of AMAPLAST .

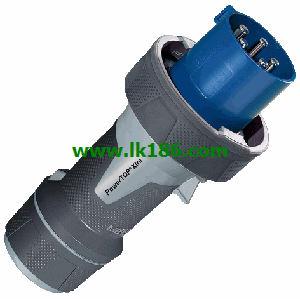

fusing behind a transparent cover.Product Name:Plug PowerTOP®
Part No.:3794.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position:4h MENNEKES 13224.
Hertz 50-60Hz.
Connection technology:Screw terminals .
Contact:nickel plated contacts, highly heat resistant contact carrier.
Protection type IP67.
screw terminals.
highly heat resistant contact carrier.
nickel plated contacts.
cable gland and external cable grip.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1168.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67.
screwless spring terminals.
standard flange dimensions.
suitable for through wiring.
20° inclination.
receptacless optionall fitted with auxiliary contact 13224.Product Name:Panel mounted receptacle
Part No.:1391.
Ampere:16A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad 13224.
Protection type IP44.
screw terminals.
straight.
