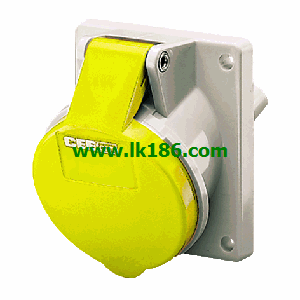

MENNEKES 1471 Price 1471

Product Name:Wall mounted receptacle
Part No.:3152.
Ampere:32A.
Poles:5p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom 1471 Price.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch 1471Product Name:Plug AM-TOP®
Part No.2115.
Ampere :32A.
Poles:5P.
Voltage:600-690V.
Earth position:5h 1471 Price.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44 1471 Price.
screw terminals.
single part body.
cable gland and sealing.
strain relief and protection against kinking.Product Name:AMAXX®S receptacle combination
Part No.:940015.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C
3 MCB´s 16A, 1p, C.
Pre-fuse max:100A.
InA :45A.
RDF:0.7.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure ssize:520 x 225mm (H x W) MENNEKES 1471.
Protection type IP44.
highly resistant to chemicals made of AMELAN®.
with highly heat resistant contact carrrieer and nickel plated contacts MENNEKES 1471.
pre-wired for installation.
enclosure front cover grey RAL 7000.
hinged to the side.
fusing behind a transparent cover.
1471 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=1471&select=5
