MENNEKES Door Switches 1858

Product Name:DELTA-BOX receptacle combination
Part No.:92897.
Fitted with:1 CEE 16A, 5p, 400V
1 CEE 16A, 3p, 230V
1 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Protection type:IP44 1858
pre-wired for installation.
with cable grip and installed hanging hook.
enclosure and insert made of AMAPLAST.Connecting terminal with screw.
Integrated shell structure.
With cable gland and seal MENNEKES Door Switches.
With stress release device to prevent the cable from breaking .
Current: 16A.
Pole number: 4p.
Voltage: >50-500V.
Location: 10h hour.
Hz: 100-300Hz.
Connection mode: screw connection.
Contact: standard.
Protection level: IP44.Product Name:Panel mounted inlet
Part No.:381.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals MENNEKES Door Switches.
Contact:standard.
Protection type IP44.
screw terminals.Product Name:Panel mounted receptacle SCHUKO®
Part No.:11331.
Ampere :16A.
Poles:2p+E.
Voltage:230V.
Shutter:no.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP54.
for portable use.
with front gasket.
with hinged lid.
3 screw terminals as connecting terminals for 1.5 – 2.5 mm².

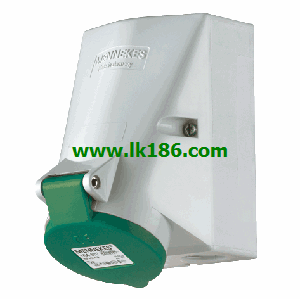

other colours on request.Product Name::Wall mounted receeptacle
Part No MENNEKES 1858.:3041.
Ampere:16A.
Poles:5p.
Voltage:110V.
Earth position:4h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, twwo blind cable entries (can be cut out) at bottom MENNEKES 1858.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.
