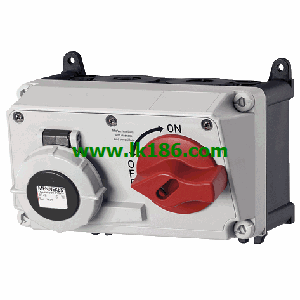

MENNEKES Door Switches 7635

Product Name:Panel mounted receptacle SCHUKO®
Part No.:11013F.
Ampere :16A.
Poles:2p+E.
Voltage:230V.
Shutter:no.
Connection technology:Plug-in terminals MENNEKES Door Switches.
Contact:standard 7635
Protection type:IP54.
for stationary use.
with hinged lid.
also suitable for cable ducts and flush mounted installation boxes MENNEKES Door Switches.
3 screw terminals as connecting terminals for 1 . 5 – 2.5 mm².Product Name:Wall mounted receptacle.
Part No.:1209.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switchProduct Name:Cepex wall mounted receptacle
Part No MENNEKES Door Switches. :4170.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked.
on request with identical locks.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.Product Name:Wall mounted phase inverter inlet
Part No.:3345.
Ampere:32A.
Poles:4p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
cable entry for 32A devices also possible on the back side.
enclosure base with stamped recess for quick cutting out.Product Name:WWall mounted recepptacle
Part No MENNEKES 7635.:7614.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP44 MENNEKES 7635.
screw terminals.
for horizontal installation.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.
7635 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=7635&select=5
