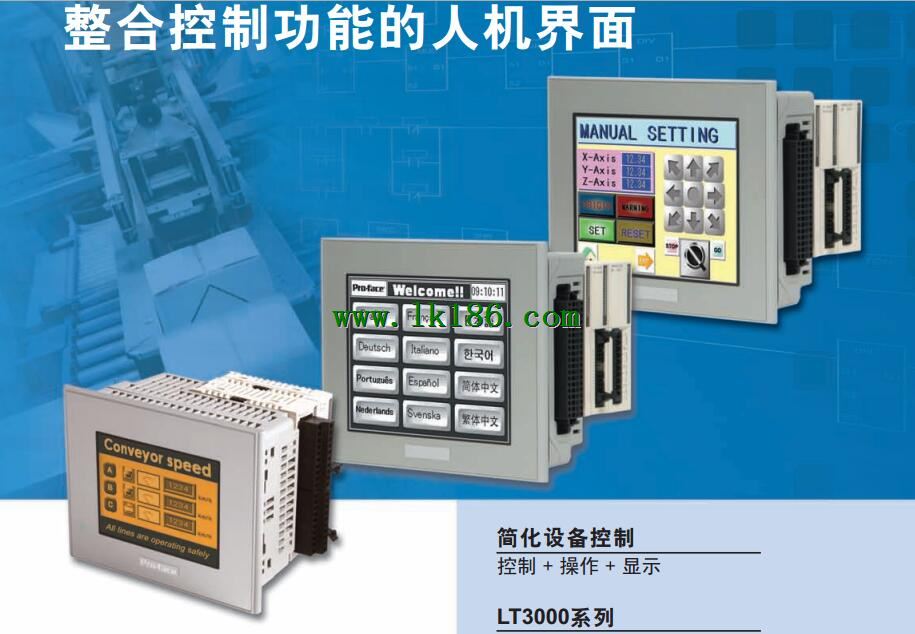

Proface LT3201-A1-D24-C

Specifications: DC24/ coated models.
Display type: TFT color LCD.
Display size: 12.1 inches.
Resolution: 800 x 600 pixels (SVGA).
Display color: 65536 color (no flash) /16384 color (3 speed flicker).
Backlight: cold cathode tube (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel Proface .
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH LT3201-A1-D24-C
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time Proface .
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate .
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time Proface . Specifications: DC24/H (handheld) class models.
Emergency stop switch: Red / key switch.
Display type: TFT color LCD.
Display size: 5.7 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: white LED (back light lamp replacement: return to repair).
Brightness adjustment: 16 level adjustment can be carried out by touch panel.
Touch panel type: resistance type (analog).
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Safety control function can minimize the problem of production site
Password management functions can be based on each operator or administrator password to enter the set level can be operated by the screen,
According to the function of the operator to set the password to enter the level.
In order to strengthen the management, the operator must enter the ID and the password to operate the equipment.
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Providing operation and maintenance instructions through video mode, which can save maintenance cost.
The operation and maintenance instructions provided by the video mode can make any operator easy to master the operation method.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time. Data transmission using USB memory.
In the production site using USB memory can be easily transferred to the production line change and change the screen data.
Remote operation and monitoring in the Office
In the office or other remote side can monitor the production site of the GP screen.
Without picture editing or programming, you can achieve real-time management and monitoring, and now, you can also provide more efficient remote maintenance control.
Error visualization.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
No need to open the control panel, through the PLC to monitor the GPP program .
Through the dataa through the GP function, you can easily debug the ladder program and adjust the data due to changes in the production line by GP easily Proface LT3201-A1-D24-C.
Use USB memory or CF card backup monthly and daily
Recording function using USB memmorry or CF card can easily improve the efficiency of daily and monthly Proface LT3201-A1-D24-C.
The use of CSV data conversion function can be modified on the PLC GP settings.
LT3201-A1-D24-C Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=LT3201-A1-D24-C&select=5
