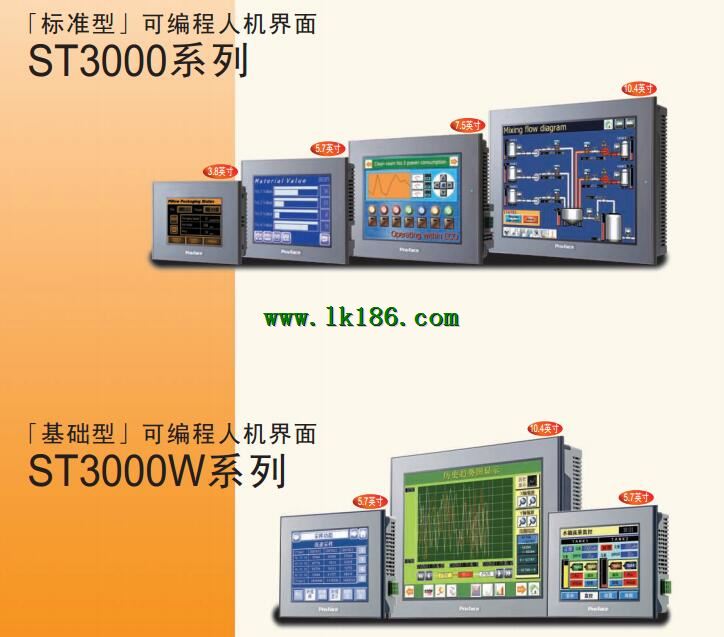

Proface AST3301-T1-D24 AST3301-T1-D24

Applicable to GLC-2600/2500, the need for bus converter (PSL-CONV00).Input / output hybrid I/O modules, including 16 point NPN/PNP input and 16 point NPN transistor outputInput voltage: DC24V.
Screen size: 12.1 inches.
Display type (resolution):65536 color TFT display LCD (SVGA 800 x 600 pixels).
Touch panel type: analog resistance Proface AST3301-T1-D24.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area) AST3301-T1-D24
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes Proface AST3301-T1-D24.
Panel opening size:
Wide 301.5 x high 227.5mm (+1/0mm).
Panel thickness: 1 . 6-5mm, chamfer radius is less than R3.
Enhance the display effect.
All models are using 65535 color LCD TFT, and has the high brightness control function of the backlight.
Exquisite picture not only improves the quality of monitoring, but also increases the safety of operation.
Mobile terminal remote monitoring Proface AST3301-T1-D24.
With light and portable iPhone, iPad, touch iPod and other mobile terminal remote monitoring of large or long distance applications, large-scale processing system or production site of a number of machines . Portable GP2000H series models accessories, RS-422 cable with D-Sub connector (10 meters).Used for converting the D-Sub 9 pin convex joint to the D-Sub 25 pin concave jointInput voltage: DC24V.
Screen size: 5.7 inches.
Display type (resolution):65536 color TFT display LCD (QVGA 320 x 240 pixels).
Touch panel type: analog resistance.
Memory: 16MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: 1.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: yes.
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Coating models: there.
Simplify troubleshootiing .
Using alarm aanalysis function, can grasp the cause of the fault in time AST3301-T1-D24.
Just a few clicks, you can set the alarm analysis screen,
Analysis of the status data of the register related to the alarm.
Remote monitoring and control.
Using remote mooniitoring software EX GP-Viewer,
Can be from a running PC system Windows remote monitoring of the production scene of the man-machine interface screen AST3301-T1-D24.
AST3301-T1-D24 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=AST3301-T1-D24&select=5
