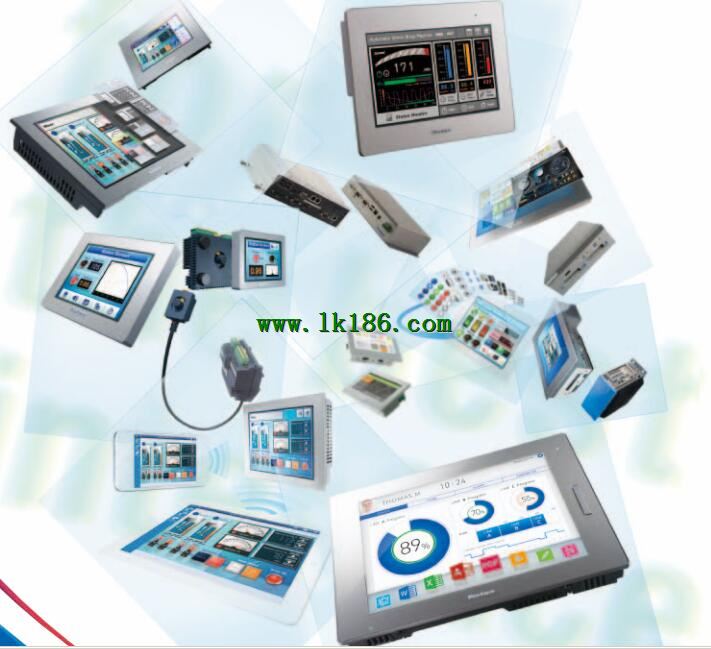

Proface PSL-DF00 PSL-DF00

Input voltage: DC24V.
Screen size: 3.5 inches.
Display type (resolution):65536 color TFT (VGA 640 x 480 pixels).
Touch panel type: analog resistance.
Memory: 32MB (internal memory), SRAM320KB (backup memory), SRAM64KB (variable area).
Ethernet interface: No.
Serial port: RS-232C * 1, RS-422/485 * 1.
SD card slot (max 32GB):1 Proface PSL-DF00.
USB interface: Type-A x (2) USB 1, Mini-B USB (2) x 1.
Replaceable battery: no (rechargeable battery) PSL-DF00
Alarm analysis function block: yes.
Panel opening size:
Wide 118.5 x high 92.5mm (+1/0mm).
Panel thickness: 1.6-5mm, chamfer radius is less than R3.
Meet a number of standards to support a wide range of applications
The coating components are widely used in various working environments, and are in line with the international standards Proface PSL-DF00.
Remote data acquisition and management.
Human machine interface, which is installed on the production machine,
With EX Microsoft software combined with Office Pro-Server and SQL and other standard PC software,
Can be simple and economical to establish a set of data management system, and effectively improve the quality of production and efficiency Proface PSL-DF00. The guide rail mounting adapter is suitable for the host module (PFXLM4B01DAC, PFXLM4B01DAK, PFXLM4B01DDC, PFXLM4B01DDK) without operating the display. Display size: 5.7 inches.
Display type: STN pseudo color LCD.
Display color: 64 color.
Resolution: 320 x 240 pixels.
Input voltage: DC24V.
Control memory: EPROM 1MB FLASH.
Program area: 128KB.
Variable area: 32KB.
Interface: built-in DIO 32 points (16 point input /16 point output, NPN type). Adapter for EX module (5 / set)12.1 inch screen protective cover (1 pieces)"Resolution: 640 x 480 pixels.
Display color: 256 color.
Internal memory: FEPROM 2MB.
Backup memory: SRAM 128KB.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Usinng Tags can mmake the picture editing more flexible PSL-DF00.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Production site data or data can be collected through the Pro-Server immediately to PC a vaariiety of applications PSL-DF00.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set.
"
PSL-DF00 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=PSL-DF00&select=5
