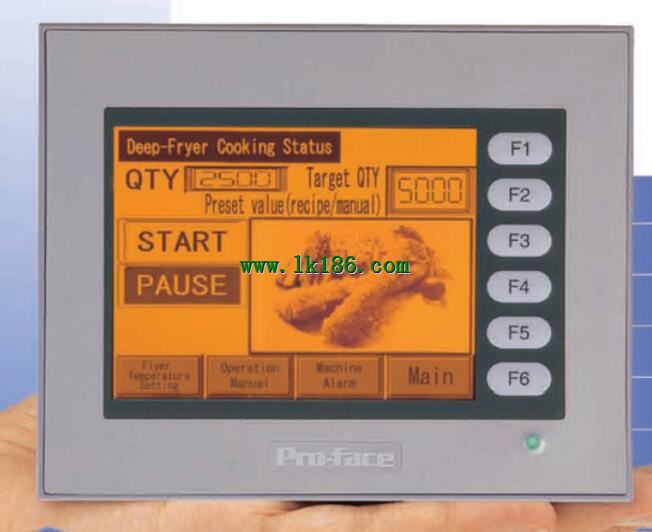

ST400-AG41-24V Proface ST400-AG41-24V

The main controller is connected to the man-machine interface for MPI communicationAnalog /PNP output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 12 points Proface ST400-AG41-24V.
Built in DIO output: 6 points.
Built in AIO input: 4 points.
Built in AIO output: 2 points ST400-AG41-24V
Common DIO:2 point high speed counter (with synchronous output) pulse capture input.
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations Proface ST400-AG41-24V.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps) .
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program.
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture Proface ST400-AG41-24V.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface.
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated.
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations.
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment.
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failuure of the phone, as far as possible not to the scene on the recovery of the machine running ST400-AG41-24V.
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy tto use system design ST400-AG41-24V.
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
ST400-AG41-24V Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=ST400-AG41-24V&select=5
