Product Name:Plug AM-TOP®
Part No.2114.
Ampere :32A.
Poles:4P.
Voltage:600-690V.
Earth position:5h.
Hertz:50-60 Hz 102.
Connection technology:Screw terminals
102
Contact:standard.
Protection type:IP44 102.
screw terminals 102.
single part body .
cable gland and sealing.
strain relief and protection against kinking.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1809.
Ampere:32A.
Poles:3p.
Voltage:110V.
Earth position :4h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTAT.
Contact: standrad.
Protection type IP67.
screwless spring terminals.
suitable for through wiring.

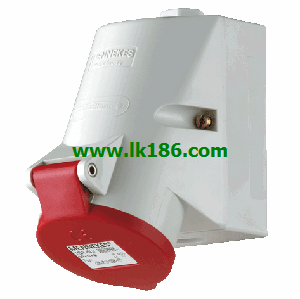

straight.Product Name:Cepex wall mounted receptacle
Part No.:4133.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44 .
screw terminals.
with labelling field.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.Product Name:Connector PowerTOP® Xtra
Part No.:14224.
Ampere:125A.
Poles:5p
Voltage:230V.
Earth position:9h.
Hertz 50-60Hz.
Connection technology:Screw terminals, SoftCONTACT.
Contact: highly heat resistant contact carrrier .
Protection type IP67 MENNEKES 102.
screw terminals.
with rubberised grip area.
frame terminals.
with SoftCONTACT.
with highly heat resistant contact carrier.
cable gland andd ssealing MENNEKES 102.
strain relief and protection against kinking.
enclosure with thread lock.
two safety slides.
products with pilot contact: part no. + index P.
