Sale 2600 MENNEKES 2600 Door Switches

Product Name:Wall mounted receptacle
Part No.:5107A.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP44 2600.
screw terminals.
switched.
mechanical DUO-interlock.

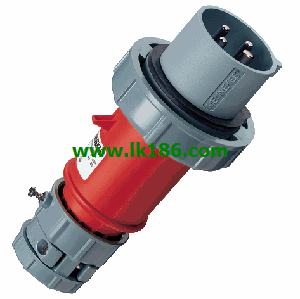

receptacles can be padlocked.Product Name:Connector ProTOP
Part No 2600:201.
Ampere:16A.
Poles:3p
Voltage:>50-500V.
Earth position:10h.
Hertz 100-300Hz.
Connection technology:Screw terminals.
Contact:standard 2600.
Protection type IP44 .
screw terminals.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.The box is firm, and the connection space is abundant.
A padlock can be installed in the OFF position.
Large switching capacity.
According to 60947-3 IEC (not more than 690V), with isolation performance 2600.
According to DIN 57106 / T.100 0106 VDE, with fingerprint protection lock.
Open terminal screws.
Auxiliary contact can be added.
Current: 40A.
Pole number: 3p.
Type: load rated power V AC3/440 = 18.5 kW.Product Name:EverGUM receptacle combination
Part No.:71064.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p, C
2 MCB´s 16A, 3p, C
2 MCB´s 16A, 1p, B.
Pre-fuse max:63A.
InA :48A.
RDF:0.5.
Connection/feeder cable:for 2 cable up to 5 x 25mm².
Enclosure size:380 x 230 mm (H x W).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.
Product Name:Panel mounted receptaccle
Part No .:14755 MENNEKES 2600.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP67 MENNEKES 2600.
screw terminals.
20° inclination.
32A receptacles optional fitted with auxiliary contact.
