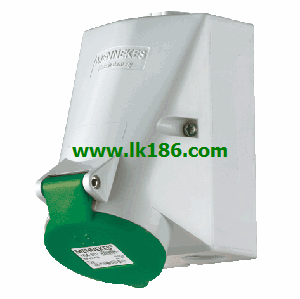

Product Name:Receptacle
Part No.3790.
Ampere :16A.
Poles:4P.
Voltage:600-690V.
Earth position:5h.
Hertz:50-60 Hz 3039.
Connection technology:Screw terminals
3039
Contact:standard.
Protection type:IP44 3039.
screw terminals 3039.
internal fixing .
one cable entry at top and two blind entries (can be cut out) at the bottom.
enclosure base can be turned 180°.Product Name:EverGUM receptacle combination
Part No.:70445.
Fitted with:2 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
4 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A
2 MCB´s 16A, 3p, C
2 MCB´s 16A, 1p, B.
Pre-fuse max:32A.
InA:32A.
RDF:1.
Connection/feeder cable:1 inlet 32A, 5p, 400V.
Enclosure size:360 x 340 x 330 mm (L x W x H).
Protection type IP44.
solid rubber enclosure, siggnal yellow RAL 10003 MENNEKES 3039.
pre-wired for installation.Connecting terminal with screw.
For wall hole diameter 70mm.
Central fixation.
The customer must provide a nose shaped block with hinged flip support connector, to ensure satisfactory fastening.
Currrennt: 16A MENNEKES 3039.
Pole number: 5p.
Voltage: 400V.
Location: 6h hour.
Hz: 50-60Hz.
Connection mode: screw connection.
Contact: standard.
Protection level: IP44.
3039 Operation manual/Instructions/Model selection sample download link:
