Product Name:Wall mounted receptacle
Part No.3719.
Ampere :63A.
Poles:5P.
Voltage:>50-500V.
Earth position:1h.
Connection technology:Screw terminals
3784
Contact:standard.
Protection type:IP44 3784.
screw terminals 3784.
SoftCONTACT.
internal fixing.
one cable entry at top and two blind entries (can be cut out) at the bottom .
enclosure base can be turned 180°.Product Name:Wall mounted receptacle SCHUKO®
Part No.:10082.
Ampere :16A.
Poles:2p+E.
Voltage:230V.
Shutter:no.
Connection technology:Plug-in terminals.
Contact:standard.
Protection type:IP44.
with hinged lid.
with 3 plug-in terminals for connection of 1.5 – 2.5 mm².
cable entry M 20 x 1.5 at top and blind entry (for cut out) M 20 x 1.5 at bottom.

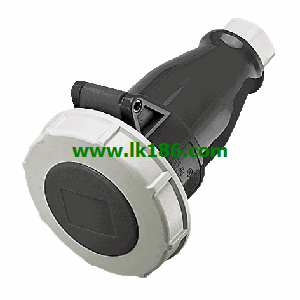

can be arranged in a row using slot and slide.Product Name:Connector SCHUKO®
Part No.:10752.
Ampere :16A.
Poles:2p+E .
Voltage:230V.
Shutter:no.
Connection technology:Screw terminals MENNEKES 3784.
Contact:standard.
screw terminals MENNEKES 3784.
with grommet and lid.
for cables up to 3 x 2.5 mm², up to H07RN-F.
3784 Operation manual/Instructions/Model selection sample download link:
