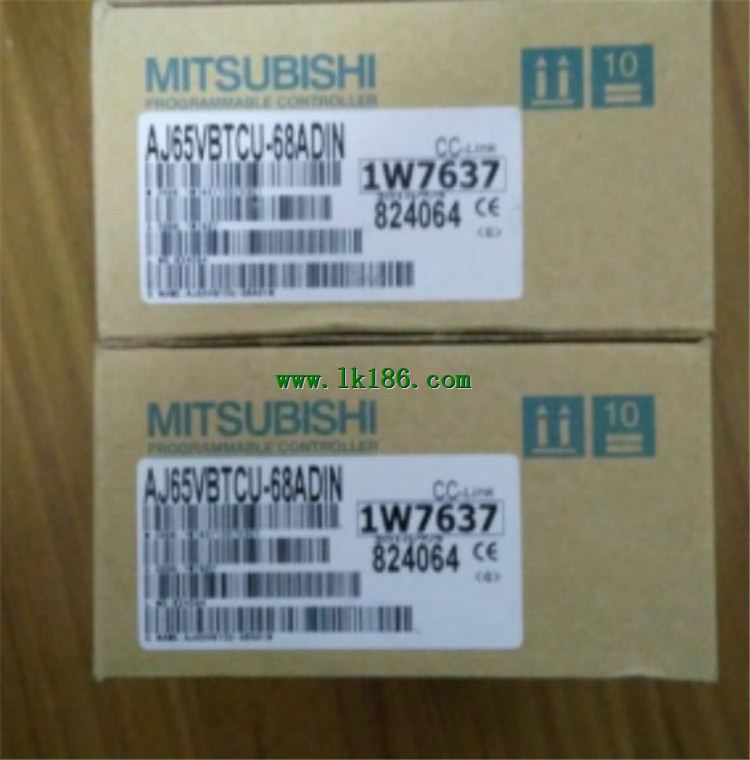

MITSUBISHI AJ65VBTCU-68ADIN

Type: 18 point terminal.
Input type: DC input, the common cathode / negative public end sharing.
Input points: 16 points.
Rated input voltage / current: DC24V (4mA).
External connection: 1 wire.
IE CC-Link field network module type remote unit.
Select input response time from 0ms/0.2ms/1ms/1.5ms/5ms/10ms/20ms/70ms MITSUBISHI .
High speed input and output control of single module can be realized by using first order logic function AJ65VBTCU-68ADIN
IE CC-Link field network remote equipment station. According to the equipment, more easily distributed input and output devices.
Can be connected to the expansion module, more convenient to expand the input and output points MITSUBISHI .
Support synchronous communication (using with simple motion control module) .
According to the simple motion control module of the network (Master) control cycle of the implementation of the control cycle and its synchronization,
Implementation of multiple simultaneous action from the station. Analog input channel number: 8CH.
Cold end compensation accuracy: plus or minus 1 MITSUBISHI .
Available thermocouple: B, R, S, K, E, J, T, N.
Available temperature resistance: - .
Resolution 1:B, R, S, N:0.3
Resolution 2:K, E, J, T:0.1
Conversion speed: 30ms/CH.
Insulation between channels: isolation transformer insulation.
Disconnection detection: there.
External wiring connection mode: 40 pin connector.
output
The temperature measurement value (16 bit''signed binary): 2700 ~ 18200.
Zoom value (16 bit with symbol binary).
High speed data sampling is not affected by the scan time.
The analog input module has the function of recording, which can be used to collect the analog quantity input data in the industrial application.
Can continuously collect data in a set period, each channel can store up to 10000 points of the recorded data.
In addition, the state of the state of any time and data in the program can be changed as a trigger,
To stop collecting data. The analog quantity input data can be stored and maintained before and after thee trigger state through the function,
Easy to determine the occurrence of the phenomenon and the collection of test data MITSUBISHI AJ65VBTCU-68ADIN. Such as motor testing equipment used in this function.
Control instructions from a programmablee ccontroller to a transducer and a power meter transmission test mode,
At the same time, the test data of the test motor is collected at the same time MITSUBISHI AJ65VBTCU-68ADIN.
AJ65VBTCU-68ADIN Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=AJ65VBTCU-68ADIN&select=5
