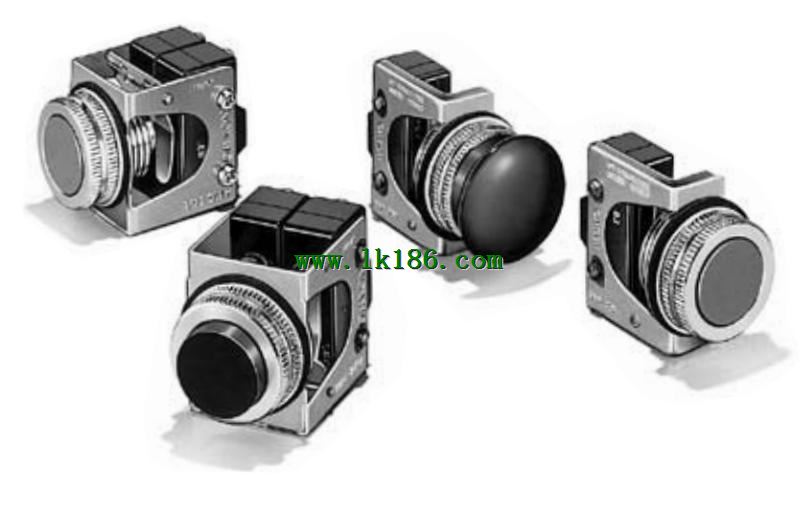

OMRON 2ZAP-2R 2ZAP-2R

Appearance: Round/Full-guard type A22-G.
Output: SPST-NC + SPST-NC.
Operation: Alternate operation (self-holding).
Illumination color: R (red); Y (yellow); G (green);
W (white); A (blue); B (black).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit OMRON 2ZAP-2R.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature 2ZAP-2R
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models) OMRON 2ZAP-2R.
IP65 (lighted models). Safety outputs: Instantaneous, DPST-NO; OFF-delayed, DPST-NO .
Auxiliary outputs: 1 (Solid-state).
Max. OFF-delay time: 30 s.
Rated voltage: 24 VDC.
Complete line-up of compact units,
including OFF-delayed safety output models.
17.5 or 22.5 mm width to save mounting space.
Simple wiring using screw-less terminals.
Easy maintenance with status indicators OMRON 2ZAP-2R.
One unit for various safety devices, from contact input to PNP input . Appearance: Round/Projection type LED voltage-reduction lighting,
(without Voltage Reduction Unit)A22L-T.
Output: SPST-NO + SPST-NC.
Lighting: LED.
Operating voltage: 100 VAC.
Operation: Momentary operation (self-resetting).
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighteed models) . 2ZAP-2R.
IP65 (lighted models). Cable: PUR.
Cable core number (core): 3.
Cable outside diameter: 4.3mm.
Cable outlet direction: L type.
Cable length L:10m.
Small round type waterproof connector.
Small waterproof connector can meet the requiremeentt of protection IP67 2ZAP-2R.
Is the ideal choice for a variety of FA and QA applications.
As with connector cable products, so no need for wiring operation.

2ZAP-2R Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=2ZAP-2R&select=5
