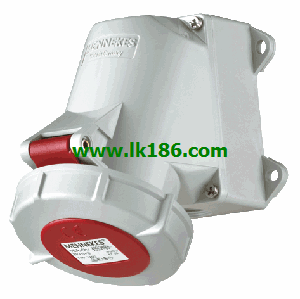

1200 MENNEKES 1200 Wall mounted receptacle
Brand:
Mennekes
Name: Wall mounted receptacle
Model: 1200
Product Name:Wall mounted receptacle.
Part No.:1200.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch
...More relevant models >>>>
Name: Wall mounted receptacle
Model: 1200
Product Name:Wall mounted receptacle.
Part No.:1200.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switch
Product Name:Wall mounted receptacle
Part No.:3152.
Ampere:32A.
Poles:5p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom MENNEKES 1200.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch 1200Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1796.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44 MENNEKES 1200.
screwless spring terminals.
suitable for through wiring.
straight.Product Name:Cepex panel mounted receptacle
Part No.:4143.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
scscrew terminals MENNEKES 1200.
with labelling field.
suitable for installation in cable ducts and columns.Product Name:Wall mounted receptacle
Part No.:7006.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position :4h
Hertz50-60 Hz.
Protection type:IP44.
Connection technology:screw terminals
Contact: standard MENNEKES Wall mounted receptacle.
screw terminals with DIN rail.
optional fitting of Neozed, Diazed, circuit-breakers and RCD`s MENNEKES Wall mounted receptacle. Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1756.
Ampere:16 A.
Poles:5 p.
Voltage:230V.
Earth position:9 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
suitable for through wiring MENNEKES Wall mounted receptacle.
internal fixing.
one cable entry at top and two blind entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.Product Name:Panel mounted receptacle with TwiinCONTACT
Part No 1200. :1702.
Ampere:16A.
Poles:3p.
Voltage:400V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1200.
screwless spring terminals.
suitable for through wiring.
20° inclination.
Part No.:3152.
Ampere:32A.
Poles:5p.
Voltage:500V.
Earth position:7h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom MENNEKES 1200.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch 1200Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1796.
Ampere:32A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44 MENNEKES 1200.
screwless spring terminals.
suitable for through wiring.
straight.Product Name:Cepex panel mounted receptacle
Part No.:4143.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
scscrew terminals MENNEKES 1200.
with labelling field.
suitable for installation in cable ducts and columns.Product Name:Wall mounted receptacle
Part No.:7006.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position :4h
Hertz50-60 Hz.
Protection type:IP44.
Connection technology:screw terminals
Contact: standard MENNEKES Wall mounted receptacle.
screw terminals with DIN rail.
optional fitting of Neozed, Diazed, circuit-breakers and RCD`s MENNEKES Wall mounted receptacle. Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:1756.
Ampere:16 A.
Poles:5 p.
Voltage:230V.
Earth position:9 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
suitable for through wiring MENNEKES Wall mounted receptacle.
internal fixing.
one cable entry at top and two blind entries (can be cut out) at bottom.
enclosure base can be turned 180°.
receptacles are designed for adding an auxiliary contact switch.Product Name:Panel mounted receptacle with TwiinCONTACT
Part No 1200. :1702.
Ampere:16A.
Poles:3p.
Voltage:400V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 1200.
screwless spring terminals.
suitable for through wiring.
20° inclination.
