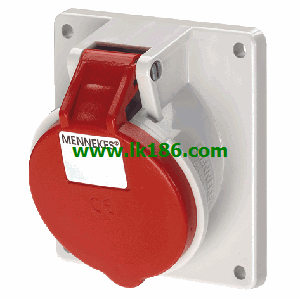

1746 Panel mounted receptacle with TwinCONTACT Earth position :6h MENNEKES 1746
Brand:
Mennekes
Name: Panel mounted receptacle with TwinCONTACT
Model: 1746
Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1746.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
flange: 73,5 x 64 mm.
fixing hole spacing: 60 x 52 mm.
20° inclination.
