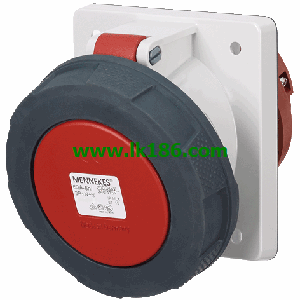

205A Panel mounted receptacle MENNEKES 205A

Product Name:Wall mounted receptacle
Part No.:7246.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals MENNEKES 205A.
switched.
mechanical DUO-interlock 205A
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Receptacle
Part No.:21075.
Ampere:16A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with highly heat resistant contact carrier MENNEKES 205A.
nickel plated contacts.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at bottom.
enclosure base can be turned 180°.
products with pilot contact: part no. + index P.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1631.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position :4h.
Hertz50-60 Hz.
Connection technology:Screwless - TwinCONTACT MENNEKES 205A.
Contact: standrad
Protection type IP44
screwless spring terminals
suitable for through wiring.
flange: 73,5 x 64 mm.
fixing hole spacing: 60 x 52 mm MENNEKES Panel mounted receptacle.
20° inclination.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1809.
Ampere:32A.
Poles:3p.
Voltage:110V MENNEKES Panel mounted receptacle.
Earth position :4h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTAT.
Contact: standrad.
Protection type IP67.
screwless spring terminals.
suitable for through wiring MENNEKES Panel mounted receptacle.
straight.Product Name:Panel mounted receptacle
Part No.:3283.
Ampere:125A.
Poles:5p.
Voltage:5000V 205A.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screw terminals, TorsionSpringCONTACT.
Contact: standrad.
Protecttion type IP67 MENNEKES 205A.
screw terminals.
TorsionSpringCONTACT.
straight.
receptacles with pilot contact: part no. + index P.
