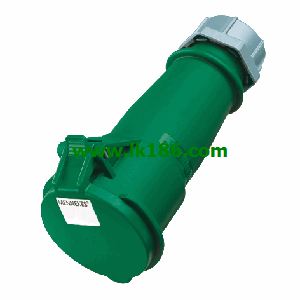

2493 MENNEKES 2493 Connector AM-TOP

Connecting terminal with screw.
Integrated shell structure.
With cable gland and seal.
With stress release device to prevent the cable from breaking.
Current: 32A.
Pole number: 5p.
Voltage: 400V.
Location: 6h hour.
Hz: 50-60Hz.
Connection mode: screw connection.
Contact: standard.
Protection level: IP67 MENNEKES 2493. Product Name:Connector ProTOP
Part No.:179A.
Ampere:16A.
Poles:3p
Voltage:110V.
Earth position:4h 2493
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP44.
screw terminals MENNEKES 2493.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.Product Name:Plug AM-TOP®
Part No.:22326.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position:6h.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:nickel plated contacts, highly heat resistant contact carrier MENNEKES 2493.
Protection type IP44.
screw terminals.
single part body.
highly heat resistant contact carrier.
nickel plated contacts.
cable gland and sealing MENNEKES Connector AM-TOP.
strain relief and protection against kinking.Product Name:Panel mounted inlet
Part No.:837.
Ampere:16A.
Poles:4p
Voltage:230V.
Earth position:9h MENNEKES Connector AM-TOP.
Hertz 50-60Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type IP44.
screw terminals.
nickel-plated contacts MENNEKES Connector AM-TOP.
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.Product Name:Plug StarTOP® with SafeCONTACT
Part No.:947.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position: 4h.
Hertz 50-60Hz.
Connection technology:Screwless - SafeCONTACT 2493.
Contact:standard
Protection type IP44
screwless, with insulatingg displacing technique MENNEKES 2493.
SafeCONTACT.
cable gland and sealing.
strain relief and protection against kinking.
enclosure with thread lock and safety slide.
