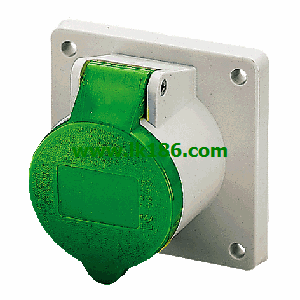

3089 MENNEKES Panel mounted receptacle 3089
Brand:
Mennekes
Name: Panel mounted receptacle
Model: 3089
Product Name:Panel mounted receptacle
Part No.:3089.
Ampere:32A.
Poles:5p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
flange: 75 x 75 mm.
fixing hole spacing: 60 x 60 mm.
straight.
also suitable for installation in cable ducts and columns.
...More relevant models >>>>
Name: Panel mounted receptacle
Model: 3089
Product Name:Panel mounted receptacle
Part No.:3089.
Ampere:32A.
Poles:5p.
Voltage:>50-500V.
Earth position :10h.
Hertz 100-300Hz.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
flange: 75 x 75 mm.
fixing hole spacing: 60 x 60 mm.
straight.
also suitable for installation in cable ducts and columns.
