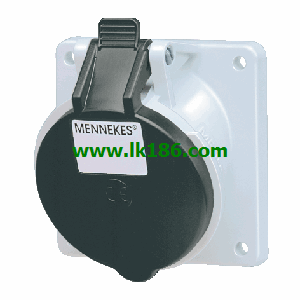

3157 MENNEKES 3157 Poles:4p Panel mounted receptacle with TwinCONTACT
Brand:
Mennekes
Name: Panel mounted receptacle with TwinCONTACT
Model: 3157
Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:3157.
Ampere:32A.
Poles:4p.
Voltage:500V.
Earth position :7h.
Hertz 50-60Hz.
Connection technology:Screwless - TwinCONTACT.
Contact: standrad.
Protection type IP44.
screwless spring terminals.
standard flange dimensions.
20° inclination.
receptacles are designed for adding an auxiliary contact switch.
