Brand: Mennekes
Name: Wall mounted receptacle with TwinCONTACT
Model: 32

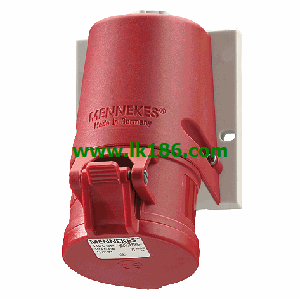

Product Name:Wall mounted receptacle with TwinCONTACT.
Part No.:32.
Ampere:32 A.
Poles:5 p.
Voltage:400V.
Earth position:6 h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP44.
screwless spring terminals.
external fixing.
cable entry from top.
blind entry ( can be cut out ) on the backside.

Product Name:Cepex double receptacle, grey
Part No.:4223.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
cable entry: 1 x M 20 plugged at top, 2 x M 25 to be cut out at the bottom, 2 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø MENNEKES 32 32 Product Name:Wall mounted receptacle
Part No.:7624.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type IP67 MENNEKES 32.
screw terminals.
for horizontal installation.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Panel mounted receptacle
Part No.:1123A.
Ampere:63A.
Poles:4p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screw terminals, SoftCONTACT.
Contact: standrad MENNEKES 32.
Protection type IP67.
screw terminals.
SoftCONTACT.
straight.
receptacles with pilot contact: part no. + index P.Product Name:Wall mounted receptacle
Part No.:7620.
Ampere:16A.
Poles:3p.
Voltage:110V.
Earth position :4h.
Hertz50-60 Hz MENNEKES Wall mounted receptacle with TwinCONTACT.
Connection technology:screw terminals.
Contact: standard MENNEKES Wall mounted receptacle with TwinCONTACT.
Protection type IP67.
screw terminals.
for horizontal installation.
switched.
mechanical DUO-interlock.
receptacles can be padlocked.Product Name:Wall mounted receptacle
Part No.:5693A.
Ampere:125A.
Poles:4p.
Voltage:500V MENNEKES Wall mounted receptacle with TwinCONTACT.
Earth positioon :7h 32.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screew terminals MENNEKES 32.
TorsionSpringCONTACT.
switched.
mechanical DUO-interlock.
3 pole fuse socket NH 00.
upon request with provision for an additional padlock.
