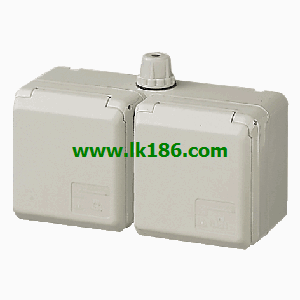

4220 Protection type IP44 MENNEKES 4220 Cepex double receptacle, grey

MennekesCepex double receptacle, grey4220

4220 Introduce | 4220 Catalog/Manual/Instructions/Software download

Brand: Mennekes
Name: Cepex double receptacle, grey
Model: 4220
Product Name:Cepex double receptacle, grey
Part No.:4220.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
cable entry: 1 x M 20 plugged at top, 2 x M 25 to be cut out at the bottom, 2 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.

Product Name:Panel mounted receptacle
Part No.:1385.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz MENNEKES 4220.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
straight.Product Name: Wall mounted receptacle with TwinCONTACT 4220
Part No.: 1724.
Ampere: 16 A.
Poles: 4 p.
Voltage: 400V.
Earth position: 6 h.
Hertz: 50-60 Hz.
Connection technology: Screwless - TwinCONTACT.
Contact: standard.
Protection type: IP44.
screwless spring terminals
suitable for through wiring
internal fixing
one cable entry at top and one blind entry (can be cut out) at bottom
enclosure base can be turned 180°Product Name:Panel mounted receptacle
Part No MENNEKES 4220. :1390.
Ampere:16A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz MENNEKES 4220 grey.
Connection technology:Screw terminals.
Contact: standrad.
Protection type IP44.
screw terminals.
straight.Product Name:Cepex panel mounted receptacle
Part No.:4280.
Ampere:32A MENNEKES Cepex double receptacle.
Poles:5p.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
suitable for installation in cable ducts and columns.
meeting DIN 18032 standards for ball rebound.Product Name:Wall mounted receptacle
Part No MENNEKES Cepex double receptacle. :7127.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP44.
screw terminals MENNEKES Cepex double receptacle.
fused with RCD (0.03A).
other leakage current ratings on request.Product Name:Wall mounted receptacle with TwinCONTACT
Parrt No 4220. :1871.
Ampere:16A.
Poles:4p.
Voltage:230V.
Earth position:9h.
Hertz:50-60 Hz.
Connection technology:Screwless - TwinCONTACT.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 externall fixing points grey.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.
