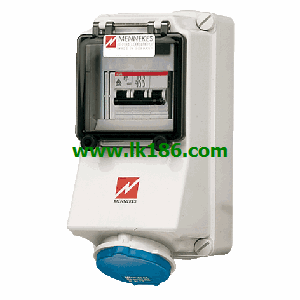

7119 MENNEKES 7119 Wall mounted receptacle

Product Name:Panel mounted receptacle
Part No.:1460.
Ampere:125A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz.
Connection technology:Screw terminals, TorsionSpringCONTACT.
Contact: standrad.
Protection type IP67 MENNEKES 7119.
screw terminals 7119
TorsionSpringCONTACT.
straight.
receptacles with pilot contact: part no. + index P.Product Name:Panel mounted receptacle with TwinCONTACT
Part No.:1636.
Ampere:16A.
Poles:4p.
Voltage:110V.
Earth position :4h.
Hertz50-60 Hz.
Connection technology:Screwless - TwinCONTACT MENNEKES 7119.
Contact: standrad .
Protection type IP44.
screwless spring terminals.
suitable for through wiring.
flange: 73,5 x 64 mm.
fixing hole spacing: 60 x 52 mm.
20° inclination.Panel socket with TwinCONTACT dual connection terminal.
Screw free spring terminal.
Resistance to chemical corrosion.
Suitable for T connection MENNEKES 7119.
With 2 external fixation holes.
Housing base can rotate 180 degrees.
Socket can be fitted with auxiliary contacts.
Current: 32A.
Pole number: 5p.
Voltage: 230V.
Location: 9h hour.
Hz: 50-60Hz.
Connection: free screw - TwinCONTACT.
Contact: standard MENNEKES Wall mounted receptacle.
Protection level: IP67.Product Name:Wall mounted receptacle
Part No.:7169.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h MENNEKES Wall mounted receptacle.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67.
screw terminals.
SoftCONTACT.
fused with RCD (0.03A).
other leakage current ratings on request.Product Name:Cepex wall mounted receptacle
Part No MENNEKES Wall mounted receptacle. :4108.
Ampere:32A.
Poless:4p 7119.
Voltage:400V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
cable entry: 1 x M 25 with cable gland at top, 11 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø MENNEKES 7119.
meeting DIN 18032 standards for ball rebound.
