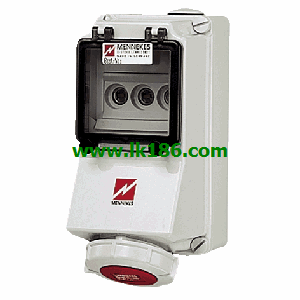

7135 MENNEKES 7135 Wall mounted receptacle

Product Name:Wall mounted receptacle
Part No.:7249.
Ampere:32A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad.
Protection type IP67.
screw terminals MENNEKES 7135.
switched.
mechanical DUO-interlock 7135
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Cepex wall mounted receptacle
Part No.:4107.
Ampere:32A.
Poles:3p.
Voltage:230V.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals MENNEKES 7135.
cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø.
meeting DIN 18032 standards for ball rebound.Product Name:Panel mounted receptacle
Part No.:1291.
Ampere:32A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz 50-60Hz.
Connection technology:Screw terminals MENNEKES 7135.
Contact: standrad.
Protection type IP44.
screw terminals.
for horizontal installation.Product Name:Wall mounted receptacle with TwinCONTACT
Part No MENNEKES Wall mounted receptacle. :1882.
Ampere:32A.
Poles:4p.
Voltage:>50-500V.
Earth position:10h.
Hertz:100-300 Hz.
Connection technology:Screwless - TwinCONTACT MENNEKES Wall mounted receptacle.
Contact:standard.
Protection type:IP67.
screwless spring terminals.
suitable for through wiring.
with 4 external fixing points.
one cable entry at top and one blind entry (can be cut out) at bottom.
receptacles are designed for adding an auxiliary contact switch.Product Name:Wall mounted receptacle
Part No MENNEKES Wall mounted receptacle. :7038. 7135.
Ampere:63A.
Poles:5p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad.
Protectionn type IP67 MENNEKES 7135.
screw terminals.
SoftCONTACT.
contactor and electrical PCS interlock.
3 pole socket fuse D III (E 33).
