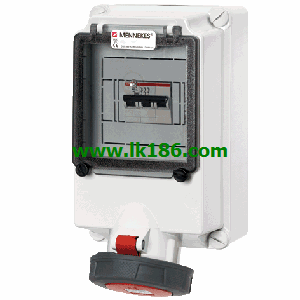

7167 Part No:5528 MENNEKES 7167
Brand:
Mennekes
Name: Wall mounted receptacle
Model: 7167
Product Name:Wall mounted receptacle
Part No.:7167.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67.
screw terminals.
SoftCONTACT.
fused with 3 pole circuit breaker, K-characteristics.
...More relevant models >>>>
Name: Wall mounted receptacle
Model: 7167
Product Name:Wall mounted receptacle
Part No.:7167.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standard.
Protection type:IP67.
screw terminals.
SoftCONTACT.
fused with 3 pole circuit breaker, K-characteristics.
Product Name:Wall mounted receptacle
Part No.:1137A.
Ampere:63A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with SoftCONTACT.
suitable for through wiring.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at the bottom MENNEKES 7167.
enclosure base can be turned 180° 7167
with 6 fixing points to accommodate special. terminals.
products with pilot contacts: part no. + index P.Product Name:Wall mounted receptacle
Part No.:7250.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad MENNEKES 7167.
Protection type IP67.
screw terminals.
SoftCONTACT.
switched.
mechanical DUO-interlock.
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Wall mounted receptacle.
Part No.:1200.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz MENNEKES 7167.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switchProduct Name:Panel mounted receptacle
Part No MENNEKES Wall mounted receptacle. :215A.
Ampere:125A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz MENNEKES Wall mounted receptacle.
Connection technology:Screw terminals, TorsionSpringCONTACT.
Contact: standrad.
Protection type IP67.
screw terminals.
TorsionSpringCONTACT MENNEKES Wall mounted receptacle.
15° inclination.
receptacles with pilot contact: part no. + index P.Product Name:Cepex panel mounted receptacle
Part No.:4177.
Ampere:32A.
Poles:3p.
Voltagee:230V 7167.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked MENNEKES 7167.
on request with identical locks.
suitable for installation in cable ducts and columns.
with identical lock: part no. + index G.
Part No.:1137A.
Ampere:63A.
Poles:3p.
Voltage:230V.
Earth position:6h.
Hertz:50-60 Hz.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP44.
screw terminals.
with SoftCONTACT.
suitable for through wiring.
internal fixing.
one cable entry at top, two blind cable entries (can be cut out) at the bottom MENNEKES 7167.
enclosure base can be turned 180° 7167
with 6 fixing points to accommodate special. terminals.
products with pilot contacts: part no. + index P.Product Name:Wall mounted receptacle
Part No.:7250.
Ampere:63A.
Poles:4p.
Voltage:400V.
Earth position :6h.
Hertz50-60 Hz.
Connection technology:screw terminals.
Contact: standrad MENNEKES 7167.
Protection type IP67.
screw terminals.
SoftCONTACT.
switched.
mechanical DUO-interlock.
RCD (0.03A).
other leakage current ratings on request.
receptacles can be padlocked.Product Name:Wall mounted receptacle.
Part No.:1200.
Ampere:16A.
Poles:5p.
Voltage:400V.
Earth position:6h.
Hertz:50-60 Hz MENNEKES 7167.
Connection technology:Screw terminals.
Contact:standard.
Protection type:IP67.
screw terminals
four external fixing holes
one cable entry at top and one blind cable entry (can be cut out) at bottom
receptacles are designed for adding an auxiliary contact switchProduct Name:Panel mounted receptacle
Part No MENNEKES Wall mounted receptacle. :215A.
Ampere:125A.
Poles:5p.
Voltage:230V.
Earth position :9h.
Hertz 50-60Hz MENNEKES Wall mounted receptacle.
Connection technology:Screw terminals, TorsionSpringCONTACT.
Contact: standrad.
Protection type IP67.
screw terminals.
TorsionSpringCONTACT MENNEKES Wall mounted receptacle.
15° inclination.
receptacles with pilot contact: part no. + index P.Product Name:Cepex panel mounted receptacle
Part No.:4177.
Ampere:32A.
Poles:3p.
Voltagee:230V 7167.
Earth position: 6h.
Hertz 50-60Hz.
Protection type IP44.
screw terminals.
with labelling field.
with safety lock.
two keys.
cannot be dismantled when locked MENNEKES 7167.
on request with identical locks.
suitable for installation in cable ducts and columns.
with identical lock: part no. + index G.
