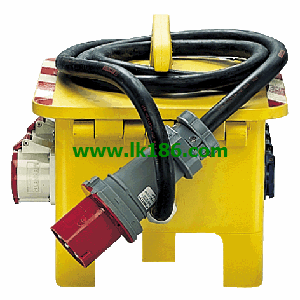

7503519 MENNEKES EverGUM receptacle combination MENNEKES 7503519
Brand:
Mennekes
Name: EverGUM receptacle combination
Model: 7503519
Product Name:EverGUM receptacle combination
Part No.:7503519.
Fitted with:1 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p+N, C
2 MCB´s 16A, 3p+N, C
6 MCB´s 16A, 1p+N, C.
Pre-fuse max:63A.
InA:48A.
RDF:0.5.
Connection/feeder cable:2m H07RN-F5G16 with CEE-plug 63A 5p 400V.
Enclosure size:360 x 340 x 330 mm (L x W x H).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.
...More relevant models >>>>
Name: EverGUM receptacle combination
Model: 7503519
Product Name:EverGUM receptacle combination
Part No.:7503519.
Fitted with:1 CEE 32A, 5p, 400V
2 CEE 16A, 5p, 400V
6 french/belg. standard 16A, 2p+E, 230V.
Fusing:1 RCD 63A, 4p, 0.03A
1 MCB 32A, 3p+N, C
2 MCB´s 16A, 3p+N, C
6 MCB´s 16A, 1p+N, C.
Pre-fuse max:63A.
InA:48A.
RDF:0.5.
Connection/feeder cable:2m H07RN-F5G16 with CEE-plug 63A 5p 400V.
Enclosure size:360 x 340 x 330 mm (L x W x H).
Protection type IP44.
solid rubber enclosure, signal yellow RAL 1003.
pre-wired for installation.
Product Name:AMAXX® receptacle combination
Part No.:930001.
Fitted with:6 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
6 MCB´s 16A, 1p, C.
Pre-fuse max.:100A.
InA:30A.
RDF:0.95.
Connection/feeder cable:for 2 cables up to 5 x 25 mm² MENNEKES 7503519.
Enclosure size:390 x 225 mm (H x W) 7503519
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover MENNEKES 7503519. Product Name:AirKRAFT®
Part No.:94553RO.
Fitted with:2 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² Protection type:IP44.
pre-wired for installation MENNEKES 7503519.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover. Product Name:Receptacle strip
Part No MENNEKES EverGUM receptacle combination. :95472.
Fitted with:3 CEE 16A, 5p, 400V
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10mm² MENNEKES EverGUM receptacle combination.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure electric grey RAL 7035 MENNEKES EverGUM receptacle combination.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
hanging clip enclosed.Product Name:AMAXX® receptacle combination
Part No.:930035.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Pre-fuse max:16A.
InA :16A.
RDF:1.
Connection/feeder cable:2 m H07RN-F5G2 7503519. 5 with CEE-plug 16A, 5p, 400V.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES 7503519.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
Part No.:930001.
Fitted with:6 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
6 MCB´s 16A, 1p, C.
Pre-fuse max.:100A.
InA:30A.
RDF:0.95.
Connection/feeder cable:for 2 cables up to 5 x 25 mm² MENNEKES 7503519.
Enclosure size:390 x 225 mm (H x W) 7503519
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover MENNEKES 7503519. Product Name:AirKRAFT®
Part No.:94553RO.
Fitted with:2 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² Protection type:IP44.
pre-wired for installation MENNEKES 7503519.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover. Product Name:Receptacle strip
Part No MENNEKES EverGUM receptacle combination. :95472.
Fitted with:3 CEE 16A, 5p, 400V
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10mm² MENNEKES EverGUM receptacle combination.
Enclosure size:410 x 97 mm (H x W).
Protection type: IP44.
pre-wired for installation.
enclosure electric grey RAL 7035 MENNEKES EverGUM receptacle combination.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
hanging clip enclosed.Product Name:AMAXX® receptacle combination
Part No.:930035.
Fitted with:1 CEE 16A, 5p, 400V
2 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Pre-fuse max:16A.
InA :16A.
RDF:1.
Connection/feeder cable:2 m H07RN-F5G2 7503519. 5 with CEE-plug 16A, 5p, 400V.
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation MENNEKES 7503519.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
...More relevant models >>>>
