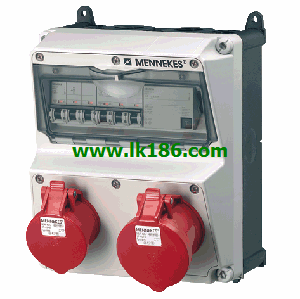

920022 1 MCB 16A, 1p, C MENNEKES 920022 AMAXXs receptacle combination
Brand:
Mennekes
Name: AMAXXs receptacle combination
Model: 920022
Product Name:AMAXX®s receptacle combination
Part No.:920022.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C.
Pre-fuse max.:40A.
InA:34A.
RDF:0.7.
Connection/feeder cable:for 1cable up to 5 x 10 mm².
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
...More relevant models >>>>
Name: AMAXXs receptacle combination
Model: 920022
Product Name:AMAXX®s receptacle combination
Part No.:920022.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V.
Fusing:1 RCD 40A, 4p, 0.03A
1 MCB 32A, 3p, C
1 MCB 16A, 3p, C.
Pre-fuse max.:40A.
InA:34A.
RDF:0.7.
Connection/feeder cable:for 1cable up to 5 x 10 mm².
Enclosure size:260 x 225 mm (H x W).
Protection type IP44.
pre-wired for installation.
hinged to the side.
enclosure and insert made of AMAPLAST.
fusing behind a transparent cover.
Product Name:DELTA-BOX receptacle combination
Part No.:92658.
Fitted with:1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Protection type:IP44 MENNEKES 920022 920022
pre-wired for installation.
with cable grip and installed hanging hook.
enclosure and insert made of AMAPLAST.Product Name:3KRAFT®
Part No.:94356GE.
Fitted with:1 CEE 16A, 5p, 400V.
2 SCHUKO® 16A, 230V.
Fusing:3 m H07RN-F5G2.5 with CEE-plug 16A, 5p, 400V.
Protection type IP44 MENNEKES 920022.
pre-wired for installation.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.Product Name:3KRAFT®
Part No.:94353SI.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² and 1 cable up to 5 x 10 mm² MENNEKES 920022.
Protection type IP44.
pre-wired for installation.
back box in black MENNEKES AMAXXs receptacle combination.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.Product Name:Receptacle strip
Part No MENNEKES AMAXXs receptacle combination. :95470.
Fitted with:2 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:410 x 97 mm (H x W) MENNEKES AMAXXs receptacle combination.
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:3KRAFT®
Part No.:94359SI.
Fitted with:1 CEE 16A, 5p, 400V
1 CEE 16A, 3p, 230V
1 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² 920022.
Protection type IP44.
pre-wired for installation MENNEKES 920022.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.
Part No.:92658.
Fitted with:1 CEE 16A, 5p, 400V
3 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm².
Protection type:IP44 MENNEKES 920022 920022
pre-wired for installation.
with cable grip and installed hanging hook.
enclosure and insert made of AMAPLAST.Product Name:3KRAFT®
Part No.:94356GE.
Fitted with:1 CEE 16A, 5p, 400V.
2 SCHUKO® 16A, 230V.
Fusing:3 m H07RN-F5G2.5 with CEE-plug 16A, 5p, 400V.
Protection type IP44 MENNEKES 920022.
pre-wired for installation.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.Product Name:3KRAFT®
Part No.:94353SI.
Fitted with:1 CEE 32A, 5p, 400V
1 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² and 1 cable up to 5 x 10 mm² MENNEKES 920022.
Protection type IP44.
pre-wired for installation.
back box in black MENNEKES AMAXXs receptacle combination.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.Product Name:Receptacle strip
Part No MENNEKES AMAXXs receptacle combination. :95470.
Fitted with:2 CEE 16A, 5p, 400V
1 SCHUKO® 16A, 230V.
Fusing:1 RCD 40A, 4p, 0.03A.
Connection/feeder cable:for 1 cable up to 5 x 10mm².
Enclosure size:410 x 97 mm (H x W) MENNEKES AMAXXs receptacle combination.
Protection type: IP44.
pre-wired for installation.
enclosure grey RAL 7035.
enclosure and insert made of AMAPLAST.
hanging clip enclosed.Product Name:3KRAFT®
Part No.:94359SI.
Fitted with:1 CEE 16A, 5p, 400V
1 CEE 16A, 3p, 230V
1 SCHUKO® 16A, 230V.
Connection/feeder cable:for 1 cable up to 5 x 10 mm² 920022.
Protection type IP44.
pre-wired for installation MENNEKES 920022.
back box in black.
hinged cover available in red (RO), yellow (GE) or silver (SI).
enclosure and insert made of AMAPLAST.
