>> A3AT-91L1-00D OMRON Small button switch A3AT-91L1-00D

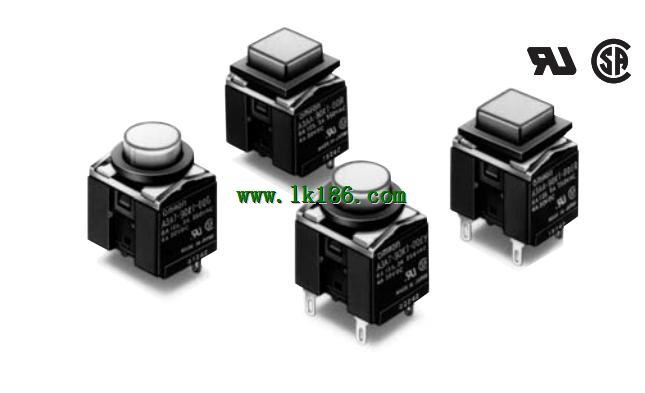

A3AT-91L1-00D OMRON Small button switch A3AT-91L1-00D
Brand:
OMRON
Name: Small button switch
Model: A3AT-91L1-00D
Type: 1A contact type.
Shape: round.
Terminal shape: terminal for printed board.
Action: alternate.
Display mode: do not display.
Operation Department color: dark gray.
Large capacity compact type push button switch.
Can also be used as a power switch with a large capacity cut.
Can be switched from micro load (minimum applicable load 1mA DC5V) to large capacity load.
