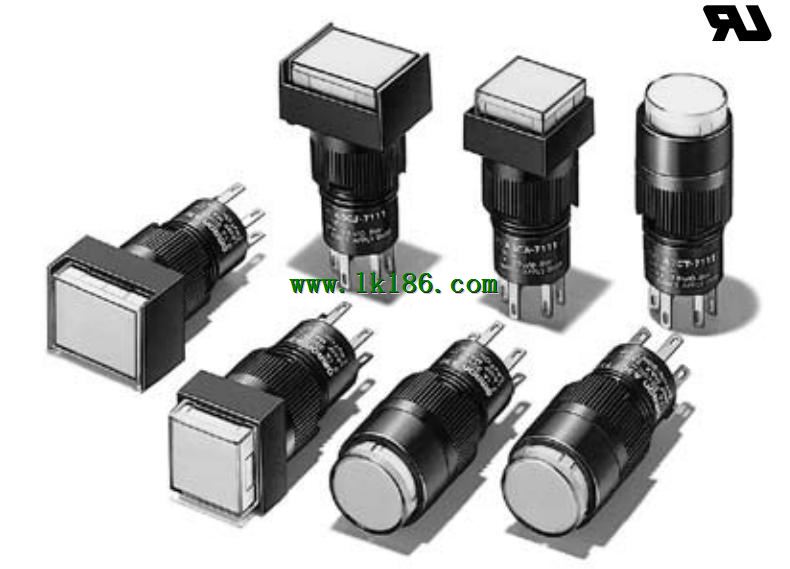

>> A3CJ-90B1-24EG OMRON A3CJ-90B1-24EG Button switch
A3CJ-90B1-24EG OMRON A3CJ-90B1-24EG Button switch
Brand:
OMRON
Name: Button switch
Model: A3CJ-90B1-24EG
Type: 1a1b welding terminal.
Shape: rectangle.
Type: General load.
Motor function: alternate action (self retaining).
With light: LED with light.
Using voltage: DC24V.
Operation Department color: green.
20mm long, with 12 round series
High brightness all one side light.
Because it is round, so easy to punch.
Miniaturization, operation feel good.
