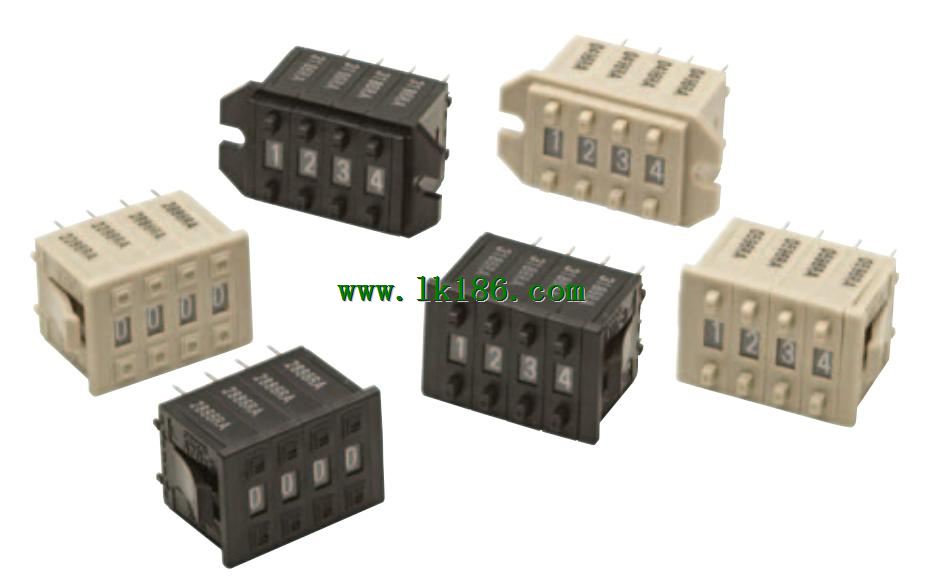

Name: Thumbwheel Switch
Model: A7D Series/A7DP Series
Ultra-small, Low-cost, Push-operated.
Switches.
All-in-one design means fewer parts are required. This product,
delivers high reliability at a low cost.
Uses long-lasting resin springs to achieve a long mechanical,
durability expectancy of 30,000 operations.
Models with stoppers for restricting the setting range are available.
The series includes a complete range of pen-push models that,
prevent accidental operation.
