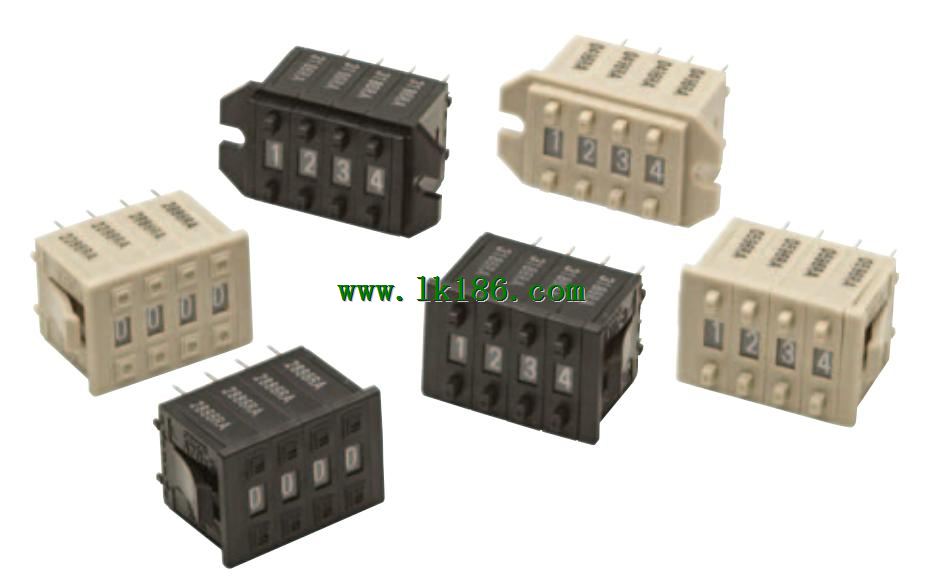

A7DP-206-1 OMRON Thumbwheel Switch A7DP-206-1
Brand:
OMRON
Name: Thumbwheel Switch
Model: A7DP-206-1
Model: A7DP.
Classification(See note 1.): Snap-in (front mounting).
Output code number: 06 (binary coded decimal).
Terminals: PCB terminals.
Color: Black.
Ultra-small, Low-cost, Push-operated.
Switches.
All-in-one design means fewer parts are required. This product,
delivers high reliability at a low cost.
Uses long-lasting resin springs to achieve a long mechanical,
durability expectancy of 30,000 operations.
Models with stoppers for restricting the setting range are available.
The series includes a complete range of pen-push models that,
prevent accidental operation.
