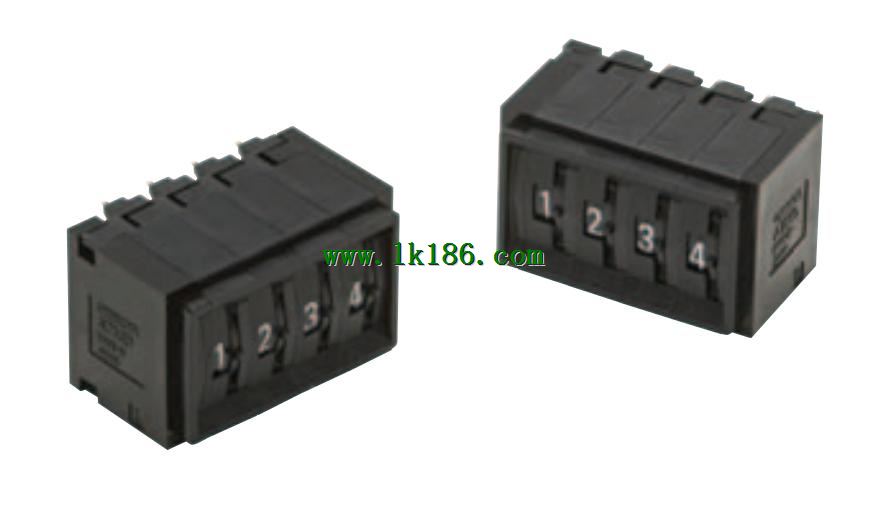

Name: Thumbwheel Switch
Model: A7MD-106-P-09-D
Model: A7MD/A7MD-@-D.
Classification(See note 1.): Mounts via printed circuit board.
Character height: 2.8 mm.
Terminals: PCB terminals.
Color: Black.
Output code number: 06 (binary coded decimal).
Ultra-small Thumbwheel-operated.
Switches.
High reliability achieved with gold contacts.
