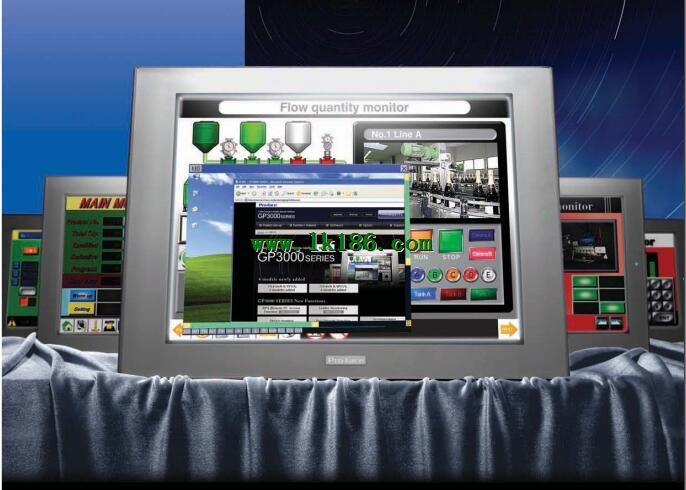

>> AGP3500-T1-D24-CA1M(PFXGP3500TADCA) Proface 104 inch touch screen (CANopen model) AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
AGP3500-T1-D24-CA1M(PFXGP3500TADCA) Proface 104 inch touch screen (CANopen model) AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
Brand:
Proface
Name: 10.4 inch touch screen (CANopen model)
Model: AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
Controller CANopen models: bit variable input: 512 points, the output of a bit: 512 point, integer variable input: 128 point, integer variable output: 128 points, connectors: D-Sub 9 pin (convex type).
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
...More relevant models >>>>
Name: 10.4 inch touch screen (CANopen model)
Model: AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
Controller CANopen models: bit variable input: 512 points, the output of a bit: 512 point, integer variable input: 128 point, integer variable output: 128 points, connectors: D-Sub 9 pin (convex type).
Specification: DC24/C (control) level models.
Display type: TFT color LCD (Gao Liangdu).
Display size: 10.4 inches.
Resolution: 640 x 480 pixels (VGA).
Display color: 65536 color (no flicker) /16384 color (flashing).
Backlight: cold cathode lamp (replaceable).
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Variable area: 64KB SRAM (using lithium battery).
Program area: EPROM 132KB FLASH.
Step number: equivalent to 15000 steps.
Touch panel type: resistance type (analog).
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Record machine status to diagnose error causes.
GP3000 series of M (Multimedia) level models of the event recording function can be recorded in the operation of the device,
This will help save and analyze the error log.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
Analog /PNP output type.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: 4 points Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Built in AIO output: 2 points.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated Proface 10.4 inch touch screen (CANopen model).
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations Proface 10.4 inch touch screen (CANopen model).
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment Proface 10.4 inch touch screen (CANopen model).
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far aas possible not to the scene on the recovery of the machine running AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy tto use system design Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
Display size: 3.5 inches.
Resolution: 320 x 240 pixels (QVGA).
LCD:TFT.
Color: 65536 color.
Ethernet interface: 1.
Serial port: 1.
CANopen interface: 1.
USB (host):1.
USB (equipment):1.
Built in DIO input: 12 points.
Built in DIO output: 6 points.
Built in AIO input: 4 points Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Built in AIO output: 2 points.
Common DIO:2 point high speed counter (with synchronous output) pulse capture input AGP3500-T1-D24-CA1M(PFXGP3500TADCA)
Dedicated DIO:2 point pulse output, PWM output.
Expansion module EX module: none.
Expansion module CANopen module: 63 stations.
Controller memory size: EPROM 132KB FLASH (equivalent to 15000 steps (up to 60000 steps).
Use EX GP-Pro to easily test and debug the project.
EX GP-Pro simulation is a kind of offline simulation function, with the help of this function,
No need to connect the man-machine interface, you can test the operation of the screen and the logic program Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Compact size.
The volume is small but the display is fresh and bright, can create a rich and readable operation picture.
The control function of the whole and the digital I/O, analog I/O, analog temperature input and USB, serial port and Ethernet communication interface Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Integrated design.
Adopt integrative design, compact structure,
When the installation is only required to open a hole in the panel 22mm.
The display module or the control module can be easily replaced when the fault is eliminated Proface 10.4 inch touch screen (CANopen model).
Flexible installation.
The control module can be installed on the DIN guide rail by using the split installation cable,
And the display module is installed in other locations Proface 10.4 inch touch screen (CANopen model).
Display module occupies a small space, even if the space is limited, but also can be flexible to install.
Connect various control devices.
Pro-face human machine interface can be connected to a variety of industrial controllers, including PLC, motion controller, robot and other equipment Proface 10.4 inch touch screen (CANopen model).
Remote HMI Pro-face.
Natural connection production line and tablet PC or smart phone. By adding APP,
True implementation of mobile operations without loss of any operational performance.
Directly confirm the cause of the failure of the phone, as far aas possible not to the scene on the recovery of the machine running AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
CANopen network
LT4000M supports data exchange with a variety of remote devices through the CANopen, easy to achieve economic and easy tto use system design Proface AGP3500-T1-D24-CA1M(PFXGP3500TADCA).
Can choose standard I/O module, also can choose action or control module and other more advanced products in complex application.
