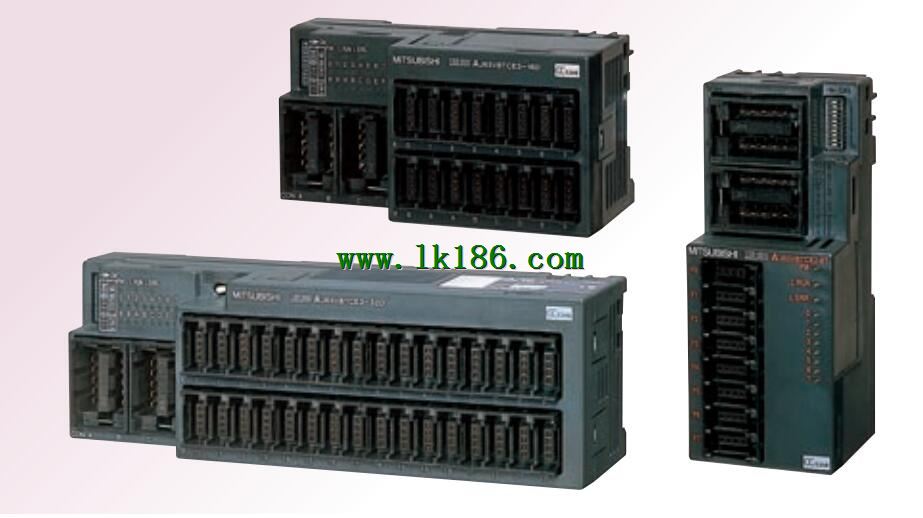

>> AJ65VBTCE3-16D Input points: 16 points MITSUBISHI AJ65VBTCE3-16D
AJ65VBTCE3-16D Input points: 16 points MITSUBISHI AJ65VBTCE3-16D
Brand:
MITSUBISHI
Name: Sensor connector type input module
Model: AJ65VBTCE3-16D
Input type: DC input, positive common end.
Input points: 16 points.
Enter the response time: 1.5ms the following.
Rated input voltage / current: DC24V/5mA.
External connection: 3 wire.
Sensor connector type (E-CON type).
Using industry standard E-CON type.
Simple wiring through sensor connector.
When installing the module can choose to use the DIN guide rail or screw mounting.
3 wire sensor input.
