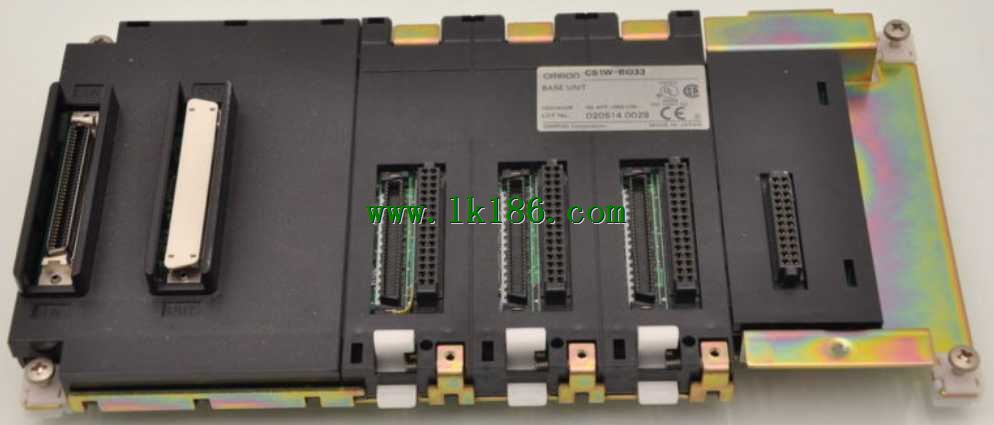

CS1W-BI033 OMRON Programmable Controllers OMRON CS1W-BI033

Unit type: CS1 Special I/O Units.
Connected ID System: V680 Series;
1 Head.
External power supply : --.
No. of unit numbers used: 1 unit number.
Current consumption: 5V, 0.26A; 26V, 0.13A;
External, --.
Communication Unit Dedicated for RFID,
V680 Allowing Direct Connection to,
OMRON PLC CJ/CS/NJ-series OMRON CS1W-BI033.
Communication unit for connecting RFID,
V680-series, which can be used around,
the world, directly to PLC CS1W-BI033
Allows batch transfer of data up to 32 kbytes. Specifications: Two RS-232C Ports.Unit type: CS1 Special analog I/O Units.
Product name: Analog Output Units.
Specifications: I/O points, 8 outputs;
Signal range selection,
Set separately for each input;
Signal range, 1 to 5 V, 0 to 5 V,
0 to 10 V, -10 V to 10 V, 4 to 20 mA;
Resolution, 1/4000 ;
Conversion speed, 1 s/point OMRON CS1W-BI033.
Externa connection, Removable erminal block.
Current consumption: 5V, 0.13A; 26V, 0.18A.
Standards: UC1, N, CE.
For Various Analog I/Os.
Analog Input Units for converting,
analog input signals into binary data.
Analog Output Units for converting ,
binary data into analog output signals OMRON CS1W-BI033. Unit classifi cation: CS1 CPU Bus Unit.
Product name:Controller Link Unit.
Specifications: Communications cable,
Wired shielded twisted-pair cable;
Communications type, Data links and,
message service; Duplex support, No.
Max. Units mountable per CPU Unit, 8 OMRON Programmable Controllers.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.33A; 26V, --.
Standards: UC1, N, L, CE.
New Controller Link Units,
Now with 4,000 Send Words OMRON Programmable Controllers.
The Controller Link is an,
FA network that can send,
and receive large amounts,
of data easily and at high speed.
The Controller Link supports data,
links that enable sharing data between,
PLCs and computers and a message service,
that enables sending and receiving,
data whenever required OMRON Programmable Controllers.
With Wired Controller Link Units,
systems can be flexibly built by using,
Repeater Units to enable T branches,
long-distance wiring, and converting,
part of the network to optical cable. Unit type: CS1 Special I/O Units.
Product name: Isolated-type,
Resistance Thermocouple Input Units.
points Input: 4 inputs.
Signal range selection:
Set separately for each input.
I/O type: Pt100, JPt100.
Conversion speed (resolution):
100 ms/4 inputs.
Externa connection: Removable erminal block.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.15A; 26V, 0.15A.
Standards: UC1, CE.
Provides the functionality of isolators,
power supplies, signal converters,
and other devices.
The Analog Input Unit converts analog,
input signals such as 1 to 5 V or 4 to 20mA,
into digital values, and takes the values,
scaled in industrial units, and transfers,
it to the CPU Unit as the process value.
Because of this, no ladder program is required,
at the CPU Unit for scaling.
The Analog Output Unit converts analog output set,
values from the CPU Unit to analog output signals,
such as 4 to 20 mA or 1 to 5 V, and outputs them.
The built-in functions, such as measurement value,
alarms, rate-of-change calculations, and square roots,
have enabled major savings in cost and sspace compared,
with previous systems CS1W-BI033.
High-resolution Models and 8-point Input Models are,
also available.
By combining the Units, logging/monitoring.
systems can be constructed,
or the Units can be used together with LCBs/LCCUs,
to construct complete process control systems OMRON CS1W-BI033.
Parameters can be easily displayed and set in an,
easy-to-understand form without special tools.
