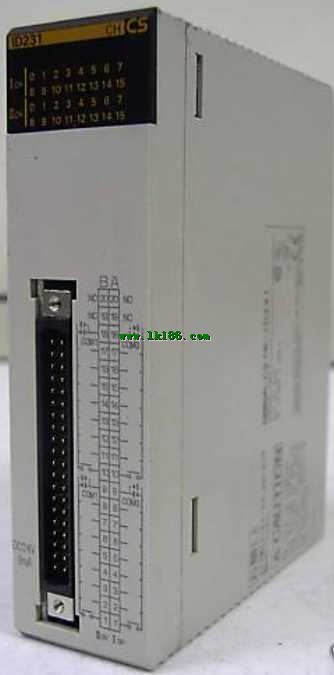

CS1W-ID231 OMRON CS1W-ID231 Programmable Controllers

Unit type: CS1 Basic I/O Units.
Product name: TTL I/O Unit.
Specifications: 5 VDC,
32 inputs, 32 outputs.
Mountable Racks: CPU Rack, CS1W-BC,
@@3, Yes, @@2, Yes;
C200HX/HG/HE Expansion I/O Rack, No.
CS1 Expansion Rack, CS1W-BI,
@@3, Yes, @@2, Yes;
CS1 Long distance Expansion Rack, Yes;
SYSMAC BUS Slave Rack, No OMRON CS1W-ID231.
Words required: 2 input words and 2 output words.
Current consumption: 5V system, 0 CS1W-ID23135A;
26 V system, --.
Standards: UC, N, L, CE.
Multi-application Controllers:
From High-performance Machine C,
Highly Reliable Process Control. Unit type: CS1 CPU Bus Unit.
Product Name: MECHATROLINK-II,
compatible Motion Control Unit.
Specifications: Control modes: Position,
speed, or torque control via MECHSTROLINK-II,
Control axes: 32 axes max OMRON CS1W-ID231.
(30 physical axes, 2 virtual axes).
Internal programming language: Special,
motion control language.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.80A; 26V, --.
Standards: UC1, CE.
Improve Equipment Design Efficiency and,
Shorten Tact Time.
Control Servos for up to 16 axes in a,
motion network with one Position Control,
Unit that supports MECHATROLINK-II OMRON CS1W-ID231.
MECHATROLINK-II is a registered trademark,
of the MECHATROLINK Members Association. Unit type: CS1 Basic I/O Units.
Product name: Relay Output Units.
Specifications: 12 to 24 VDC,
0.5A . 16 outputs; Sinking OMRON Programmable Controllers.
Mountable Racks: CPU Rack, CS1W-BC,
@@3, Yes, @@2, Yes;
C200HX/HG/HE Expansion I/O Rack, No.
CS1 Expansion Rack, CS1W-BI,
@@3, Yes, @@2, Yes;
CS1 Long distance Expansion Rack, Yes;
SYSMAC BUS Slave Rack, No OMRON Programmable Controllers.
Words required: 1 word.
Current consumption: 5V system, 0.17A;
26 V system, --.
Standards: UC1, N, L, CE.
Multi-application Controllers:
From High-performance Machine C,
Highly Reliable Process Control OMRON Programmable Controllers. Product name: CS1 Expansion Backplanes.
Specifications: For both CS/C200H-series,
Units; 8 slots.
Mountable configuration units:
Basic I/O Units, CS-series Basic I/O Unit,
Yes; C200H series Basic I/O Unit, Yes;
C200H Group-2 High density I/O Unit, Yes CS1W-ID231.
Special I/O Units: CS-series Special I/O Unit,
Yes; C200H series Special I/O Unit, Yes.
CPU Bus Units: CS-series CPU Bus Unit, Yes.
Current consumption: 5V system, 0.233A;
26 V system, -- OMRON CS1W-ID231.
Standards: U, C, N, L, CE.
Multi-application Controllers:
From High-performance Machine C,
Highly Reliable Process Control.
