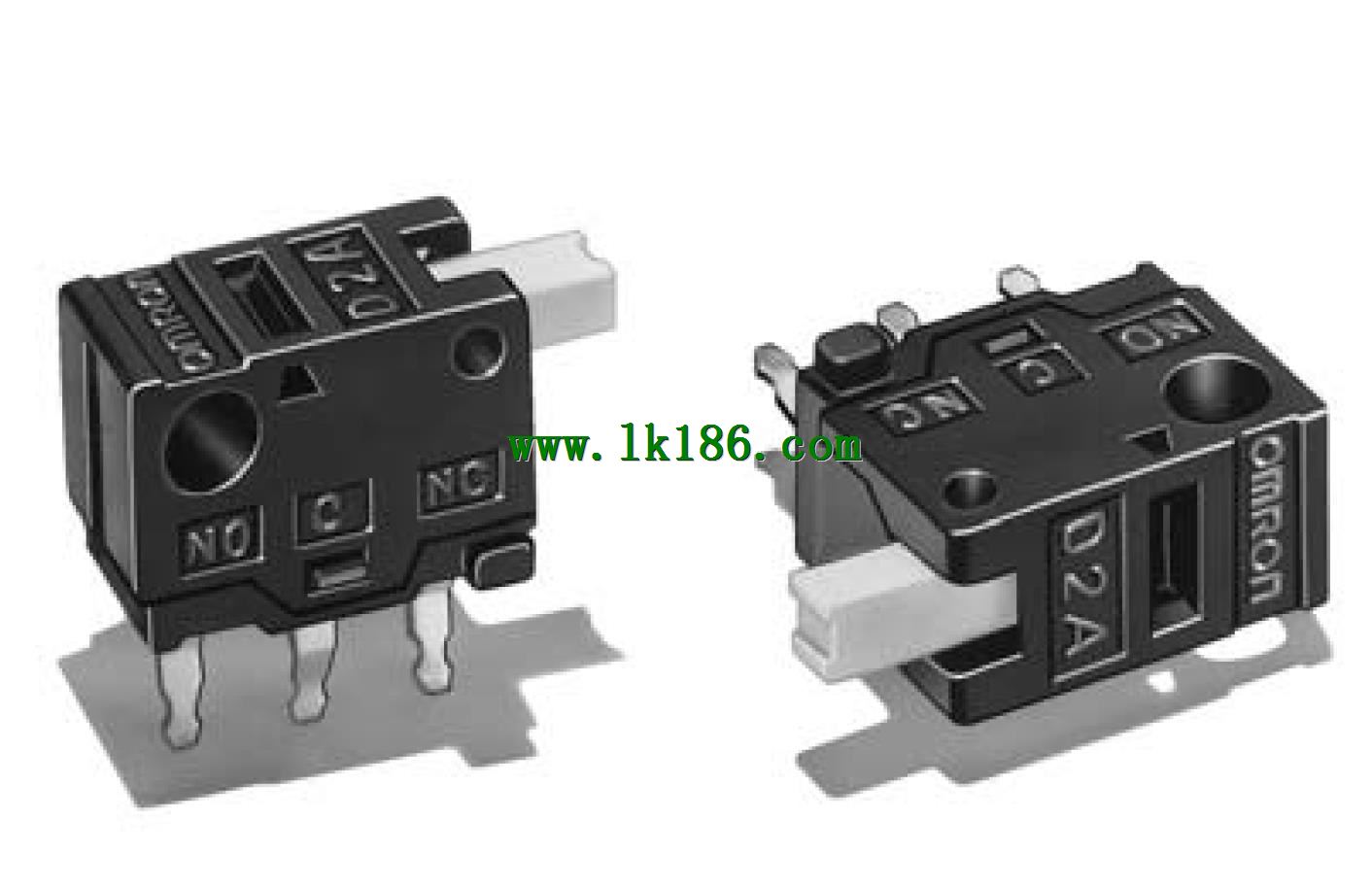

Name: Super small button detection switch
Model: D2A-1120
Action force (OF):0.49N (low load action type).
Switch timing: no short circuit type.
Drive rod: needle shaped button type.
Super small check switch with push button action type
Super small (6 x 8 x width high depth 4.2mm), light weight (about 0.3 grams), long stroke 3mm.
Short circuit and non short circuit time built-in sliding device capable of selecting switch.
Widely used in small household electrical appliances, audio equipment, office equipment, communication equipment, etc..
