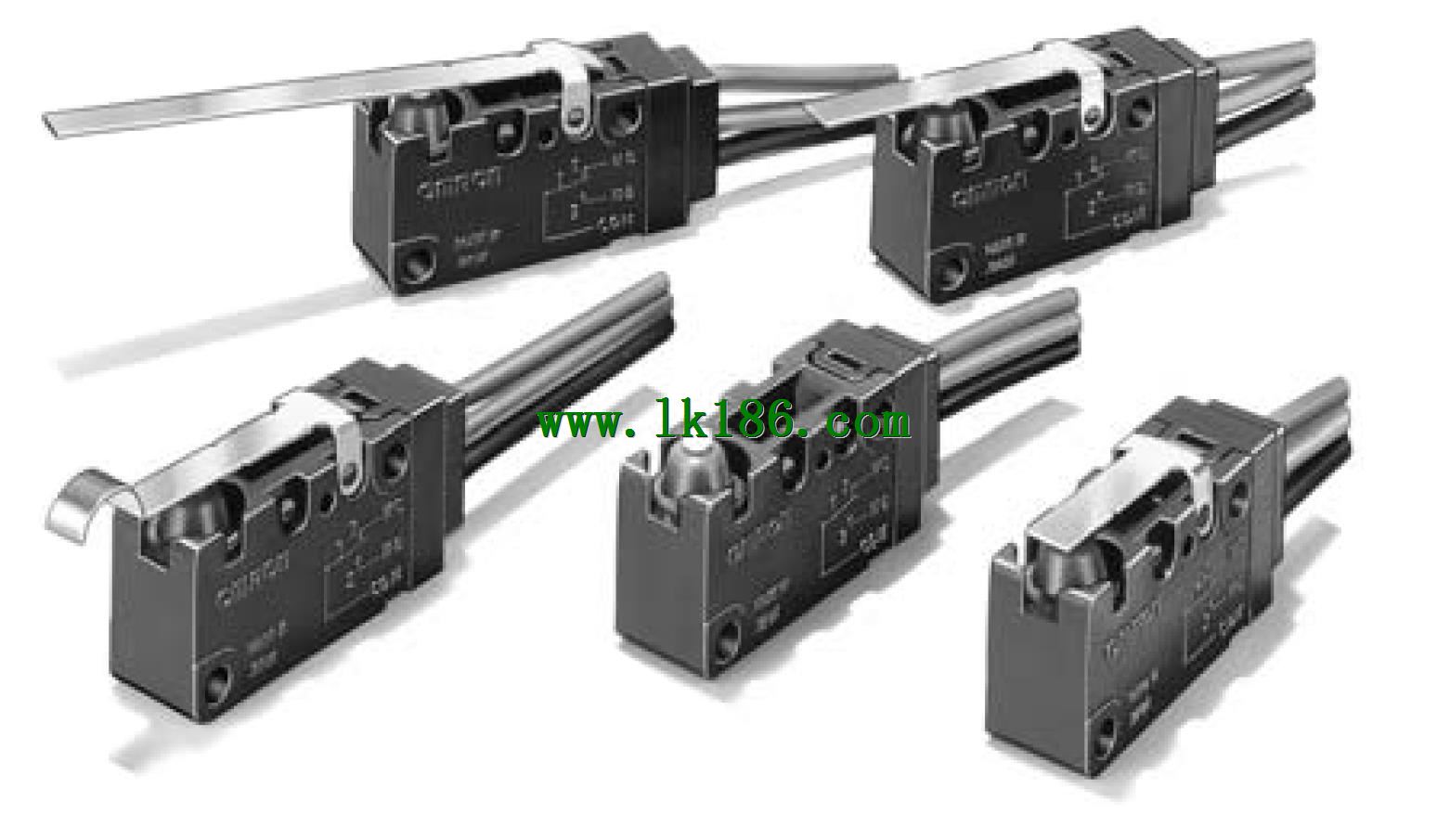

>> D2SW-3D OMRON D2SW-3D Sealed Subminiature Basic Switch
D2SW-3D OMRON D2SW-3D Sealed Subminiature Basic Switch
Brand:
OMRON
Name: Sealed Subminiature Basic Switch
Model: D2SW-3D
Ratings: 3 A.
Actuator: Pin plunger.
Terminals: PCB terminals.
Contact form: SPDT.
Sealed Subminiature Basic.
Switch Conforming to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing,
making this switch ideal for places subject to,
water spray or excessive dust.
Ideal for automobiles, automatic vending,
machines, refrigerators, ice-making equipment,
bath equipment, hot-water supply systems, air,
conditioners, and industrial equipments, which,
require high environmental resistance.
Models available with UL, CSA, and VDE safety,
standard compliance.
...More relevant models >>>>
Name: Sealed Subminiature Basic Switch
Model: D2SW-3D
Ratings: 3 A.
Actuator: Pin plunger.
Terminals: PCB terminals.
Contact form: SPDT.
Sealed Subminiature Basic.
Switch Conforming to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing,
making this switch ideal for places subject to,
water spray or excessive dust.
Ideal for automobiles, automatic vending,
machines, refrigerators, ice-making equipment,
bath equipment, hot-water supply systems, air,
conditioners, and industrial equipments, which,
require high environmental resistance.
Models available with UL, CSA, and VDE safety,
standard compliance.
